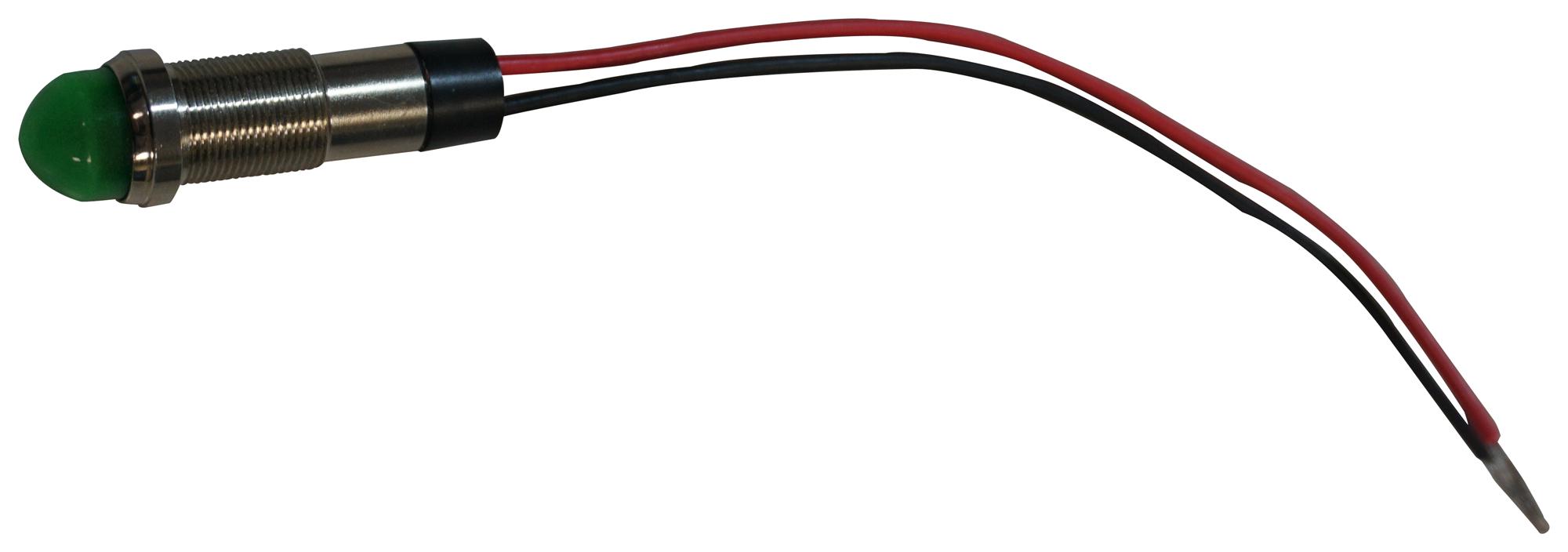

DIALIGHT 6563205303F Panel Mount LED Indicator
The DIALIGHT 656 Series LED Panel Mount Indicators are robust and versatile components designed for demanding industrial environments. Utilizing InGaN and AllnGap technologies, these indicators provide exceptional brightness and a wide range of color and voltage options. Their durable construction, featuring a nickel-plated brass housing, transparent polycarbonate lens (UL 94V-0), and phosphor bronze lock washers, ensures long-term reliability in applications such as instrument panels, safety systems, power generation, and transportation. The indicators are available with 6” wire leads or 110 Faston quick connect terminals, and are certified to UL1598 and NEMA 4x IP66 standards. With a typical lifespan of 100,000 hours, these indicators offer a cost-effective and long-lasting solution for visual indication needs.
DIALIGHT 6563205303F Panel Mount LED Indicator Specifications:
- Mounting Hole Size: 0.5" (12.7mm)
- Max Panel Thickness: 0.600" (15.24 mm)
- Mounting Torque: 40 in-lbs
- Operating Voltage: 12 to 125VDC and 125, 230VAC
- Operating Temp: -30°C to +85°C
- Storage Temp: -40°C to +100°C
- Electrical Connection: 110 Faston Quick connect terminals or 6” wire leads
- Housing Material: Nickel Plated Brass
- Lens Material: Transparent Polycarbonate (UL 94V-0)
- Terminal Material: Tin over Brass
- Wire Lead Material: 18 AWG
- Lock Washer Material: Phosphor Bronze – White Nickel Plated
- Nut Material: Brass – White Nickel Plated
- Certifications: UL1598, NEMA 4x IP66
- RoHS Compliant: Yes (w/6C Exemption)
- Typical Lifespan: 100K hours
- Viewing Angle: 50 (flat), TBD (domed)
