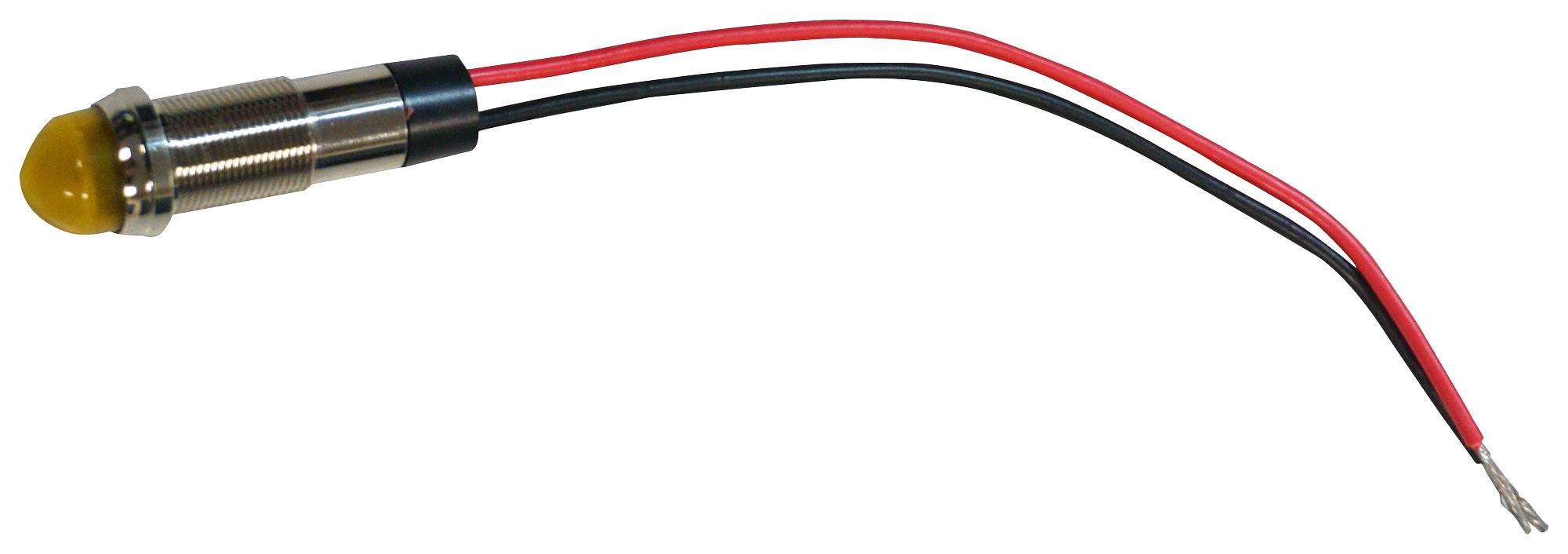

DIALIGHT 6563304303F LED Panel Mount Indicator
Dialight's 656 Series LED Panel Mount Indicators are robust and reliable solutions for visual indication in diverse industrial settings. Utilizing InGaN and AllnGap technologies, these indicators provide exceptional brightness and color clarity. Suitable for instrument panels, safety applications, and power generation, they are built to withstand exposure to rain, dust, and sunlight. Available with faston connectors or wire leads, these panel mount indicators offer versatility and ease of integration.
DIALIGHT 6563304303F LED Panel Mount Indicator Specifications:
- Mounting Hole Size: 0.5" (12.7mm)
- Max Panel Thickness: 0.600" (15.24 mm)
- Mounting Torque: 40 in-lbs
- Operating Voltage: 12 to 125VDC and 125, 230VAC
- Operating Temp: -30°C to +85°C
- Storage Temp: -40°C to +100°C
- Electrical Connection: 110 Faston Quick connect terminals or 6" wire leads
- Housing Material: Nickel Plated Brass
- Lens Material: Transparent Polycarbonate (UL 94V-0)
- Terminal Material: Tin over Brass
- Wire Lead Material: 18 AWG
- Lock Washer Material: Phosphor Bronze – White Nickel Plated
- Nut Material: Brass – White Nickel Plated
- Certifications: UL1598, NEMA 4x IP66
- LED Code: See table
- Lens Style: Flat (replace first digit with '3' for domed)
- Color: Red, Green, Yellow, Blue
- Voltage: 12, 24, 28, 120, 230V
- Voltage Type: VDC, VAC
- Current: 3-20mA
- Life Expectancy: 100K hours
- Viewing Angle: 50 degrees (flat), TBD (domed)
Buy the 656-3304-303F Dialight LED Panel Mount Indicator | myMectronic
Securely purchase the Dialight 656-3304-303F LED Panel Mount Indicator and ensure reliable performance for your critical applications.
Buy Now
Frequently Asked Questions
Where can I buy DIALIGHT 6563304303F?
You can click on the BUY or RFQ button to purchase 6563304303F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6563304303F?
You can download the 6563304303F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6563304303F?
DIALIGHT
