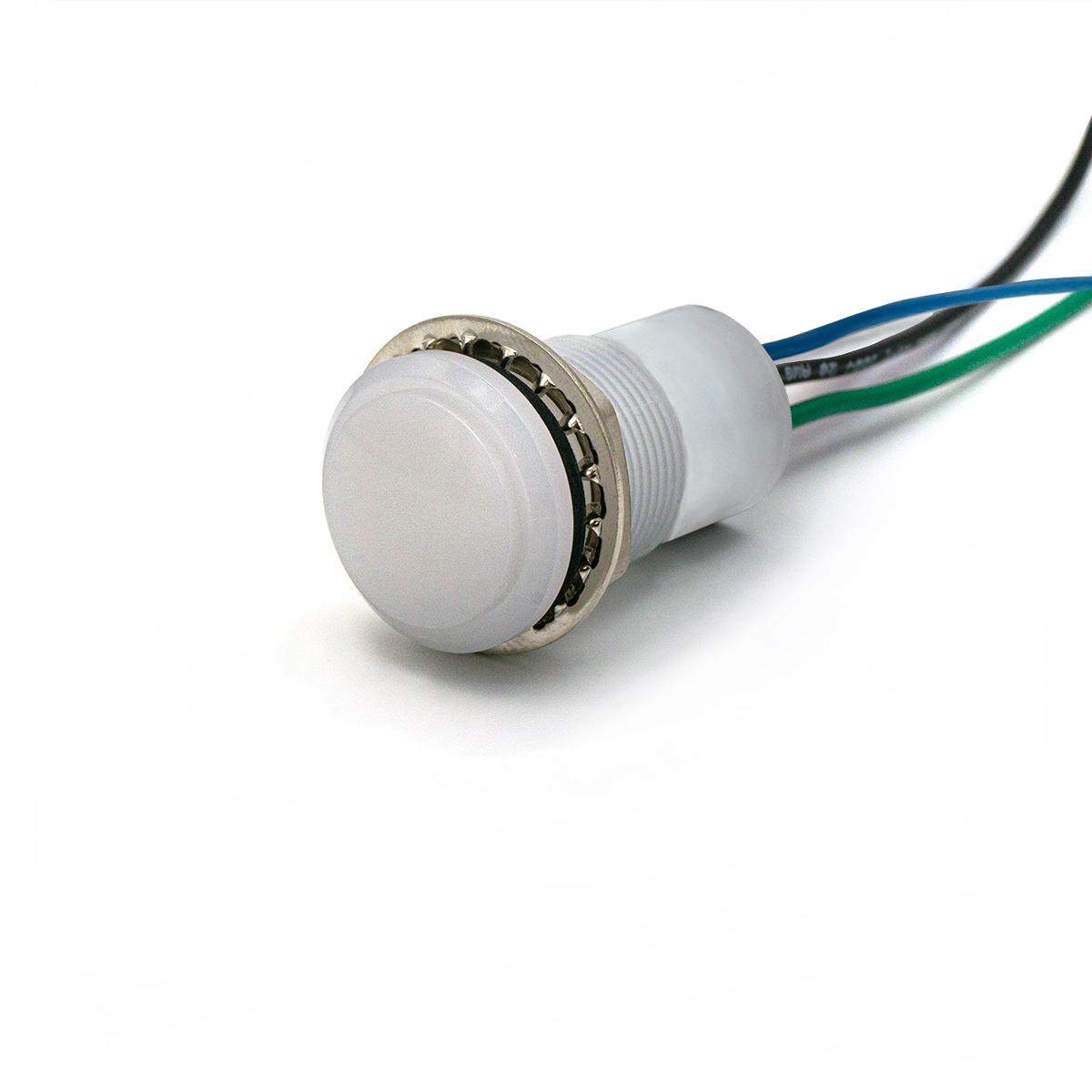

DIALIGHT 6571465303F Bi-Color Panel Mount Indicator
The DIALIGHT 657 Series LED Panel Mount Indicators are robust, watertight devices designed for demanding industrial and commercial applications. Their durable polycarbonate housing and sealed construction ensure reliable performance in environments exposed to moisture, dust, and vibration. Common applications include electrical control panels, wastewater treatment facilities, transportation vehicles, and industrial equipment dashboards. The indicators are available in various LED color combinations and voltage options, providing versatility for diverse signaling needs. They are RoHS compliant and feature a simple mounting design with standard threads and a compact footprint.
DIALIGHT 6571465303F Bi-Color Panel Mount Indicator Specifications:
- Lens Style: Flat
- LED Color: Green Diffused
- Typical IF: 20 mA
- Typical VF: 10-30 VDC
- Typical Intensity: 515 mcd
- Voltage Options: 10-30 VDC
- Operating Temperature: -40 °C to +85 °C
- Storage Temperature: -40 °C to +100 °C
- Electrical Connection: 18 AWG anti-capillary wire
- Housing Material: Polycarbonate (UL 94V-0)
- Lens Material: Polycarbonate (UL 94V-0)
- Wire Leads Length: 6"
- Mounting Hole Size: 0.687" (17.46 mm)
- Max Panel Thickness: 0.350" (8.89 mm)
- Mounting Torque: 15 in-lbs
Buy the 657-1465-303F DIALIGHT Bi-Color Panel Mount Indicator | myMectronic
Securely purchase the DIALIGHT 657-1465-303F Panel Mount Indicator and ensure reliable performance for your critical applications.
Buy Now
Frequently Asked Questions
Where can I buy DIALIGHT 6571465303F?
You can click on the BUY or RFQ button to purchase 6571465303F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6571465303F?
You can download the 6571465303F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6571465303F?
DIALIGHT
