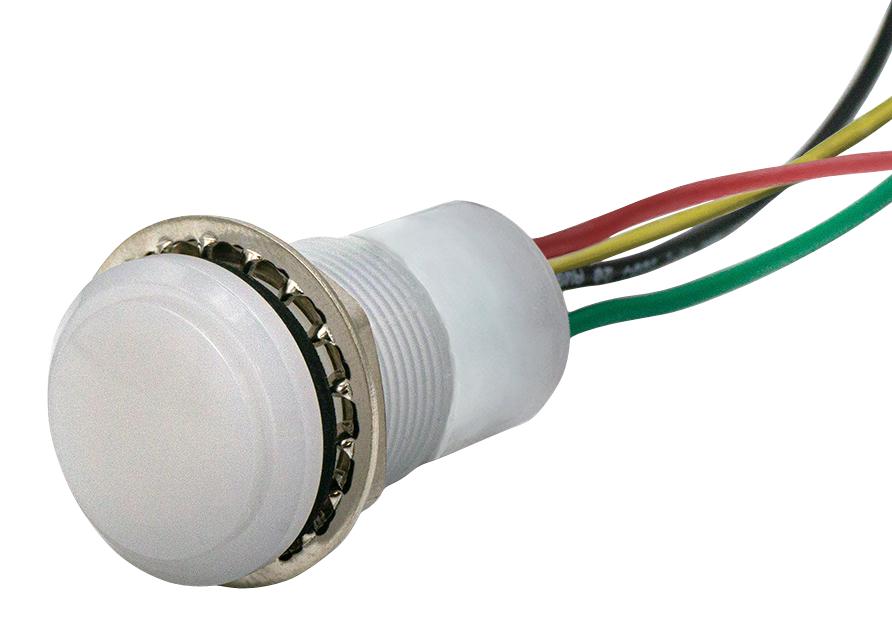

DIALIGHT 6571495303F Bi-Color Panel Mount Indicator
The DIALIGHT 657 Series LED Panel Mount Indicators are robust, watertight devices designed for demanding industrial applications. Their durable polycarbonate housing and sealed construction ensure reliable performance in environments such as electrical control panels, wastewater treatment facilities, buses, and agricultural equipment. Available in bi-color and tri-color configurations, these indicators provide clear visual status indication and are easily integrated into various systems. The indicators operate on 10-30 VDC and offer a wide operating temperature range, ensuring consistent performance across diverse conditions.
DIALIGHT 6571495303F Bi-Color Panel Mount Indicator Specifications:
- Lens Material: Polycarbonate (UL 94V-0)
- Housing Material: Polycarbonate (UL 94V-0)
- Voltage Options: 10-30 VDC
- Operating Temperature: -40 °C to +85 °C
- Storage Temperature: -40 °C to +100 °C
- Electrical Connection: 18 AWG anti-capillary wire
- Mounting Hole Size: 0.687" (17.46 mm)
- Max Panel Thickness: 0.350" (8.89 mm)
- Mounting Torque: 15 in-lbs
- Wire Leads: 6" (same color as LED)
- LED Color Options: Red, Green, Blue, Yellow, Yellow White
- Typical Forward Current: 20 mA
- Typical Forward Voltage: 10-30 VDC
- Typical Intensity: 90-515 mcd
Buy the 657-1495-303F DIALIGHT Bi-Color Panel Mount Indicator | myMectronic
Securely purchase the DIALIGHT 657-1495-303F Bi-Color Panel Mount Indicator and ensure reliable performance for your critical applications.
Buy Now
Frequently Asked Questions
Where can I buy DIALIGHT 6571495303F?
You can click on the BUY or RFQ button to purchase 6571495303F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6571495303F?
You can download the 6571495303F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6571495303F?
DIALIGHT
