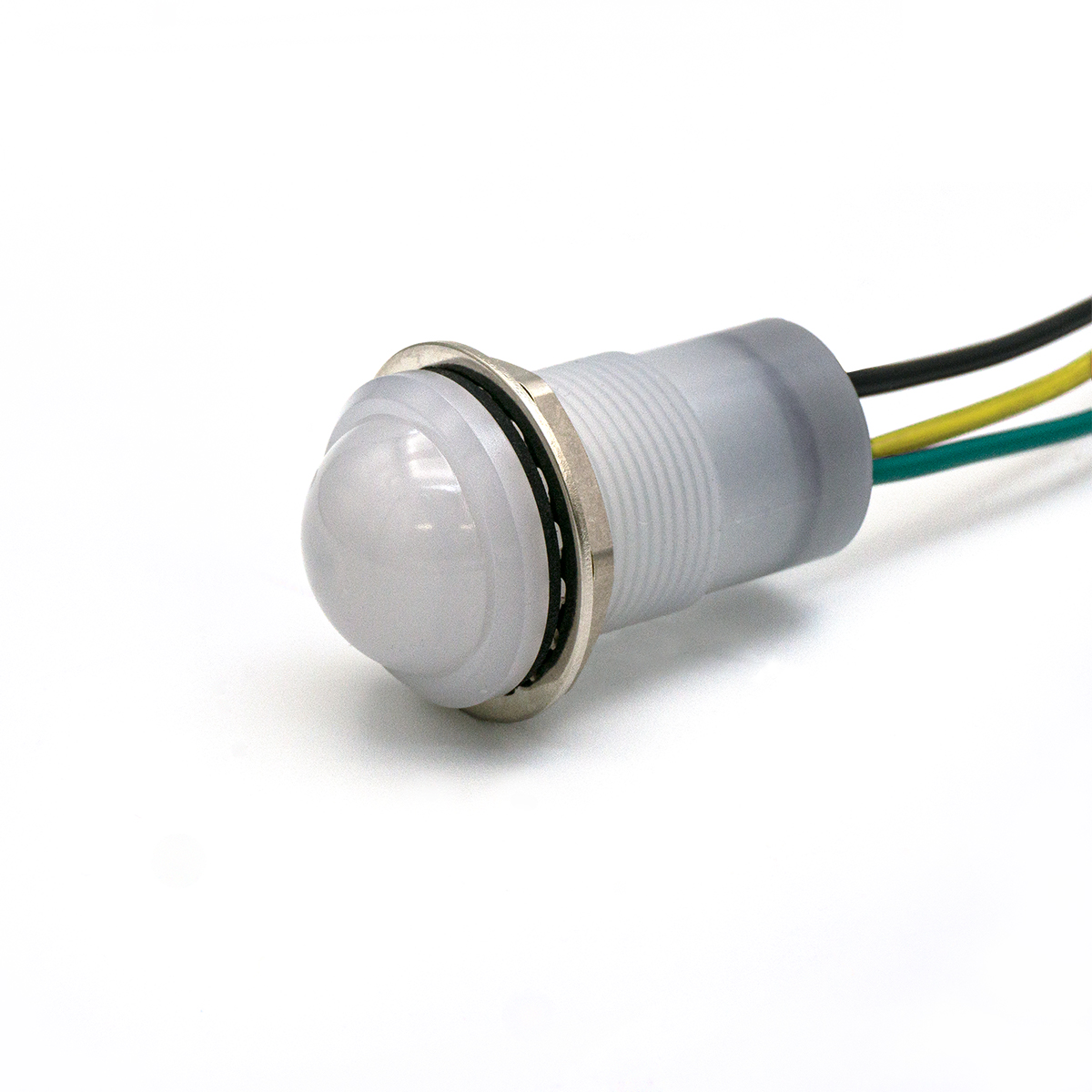

DIALIGHT 6572435303F Bi-Color Panel Mount Indicator
The DIALIGHT 657 Series LED Panel Mount Indicators are robust, watertight devices designed for demanding industrial and commercial applications. Their durable polycarbonate housing and sealed construction ensure reliable performance in environments such as electrical control panels, wastewater treatment facilities, buses, agricultural equipment, and military vehicles. Available in various LED color combinations, these indicators provide clear visual status indication. They operate on a 10-30 VDC power supply and are RoHS compliant, meeting environmental standards. The indicators feature a domed lens, anti-capillary wiring, and nickel-plated hardware for enhanced durability and performance.
DIALIGHT 6572435303F Bi-Color Panel Mount Indicator Specifications:
- Voltage Options: 10-30 VDC
- Operating Temp: -40 °C to +85 °C (-40 °F to +185°F)
- Storage Temp: -40 °C to +100 °C (-40 °F to +212 °F)
- Electrical Connection: 18 AWG anti-capillary wire
- Housing Material: Polycarbonate (UL 94V-0)
- Lens Material: Polycarbonate (UL 94V-0)
- Wire Leads: 6"
- Lock Washer: White Nickel Plated Bronze
- Nut: White Nickel Plated Brass
- Mounting Hole Size: 0.687" (17.46 mm) Max
- Max Panel Thickness: 0.350" (8.89 mm)
- Mounting Torque: 15 in-lbs
- LED Color: Various (Red, Green, Blue, Yellow, White)
- Typical Forward Current: 20 mA
- Typical Forward Voltage: 10-30 VDC
- Typical Intensity: 255-515 mcd
Buy the 657-2435-303F DIALIGHT Bi-Color Panel Mount Indicator | myMectronic
Securely purchase the DIALIGHT 657-2435-303F Panel Mount Indicator online for reliable performance and fast delivery.
Buy Now
Frequently Asked Questions
Where can I buy DIALIGHT 6572435303F?
You can click on the BUY or RFQ button to purchase 6572435303F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6572435303F?
You can download the 6572435303F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6572435303F?
DIALIGHT
