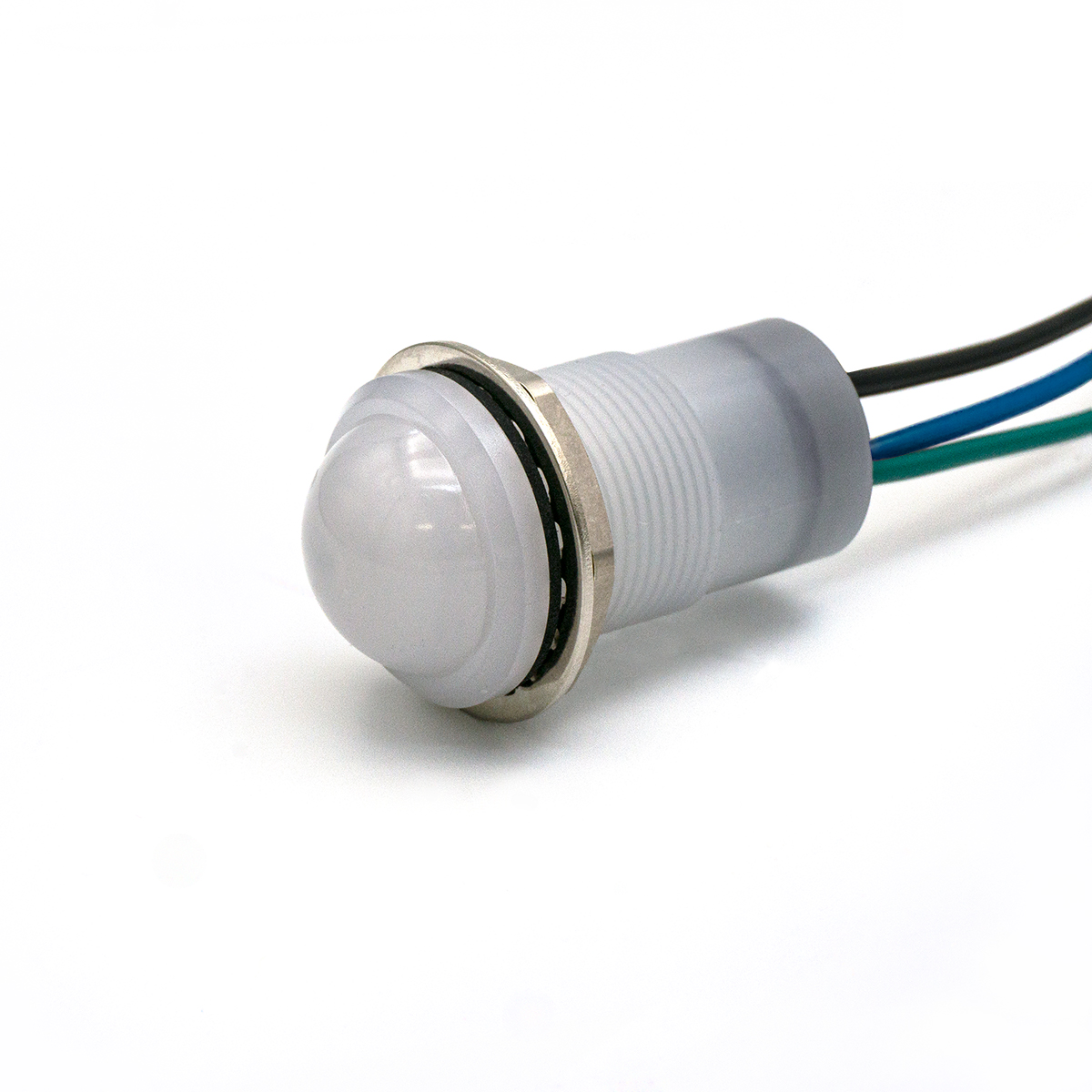

DIALIGHT 6572465303F Bi-Color Panel Mount Indicator
The DIALIGHT 657 Series LED Panel Mount Indicators are robust, watertight devices designed for demanding industrial applications. Their durable polycarbonate housing and sealed construction make them ideal for use in electrical control panels, wastewater treatment facilities, buses, agricultural equipment, and military vehicles. Available in a range of LED colors, these indicators provide clear visual status indication. They are RoHS compliant and operate on a 10-30 VDC power supply, ensuring reliable performance in challenging conditions. The indicators feature a domed lens and are designed for easy panel mounting.
DIALIGHT 6572465303F Bi-Color Panel Mount Indicator Specifications:
- Lens Style: Domed
- LED Color: Red/Green
- Typical Forward Current: 255 mA
- Typical Forward Voltage: 10-30 VDC
- Typical Intensity: 500 mcd
- Mounting Hole Size: 0.687" (17.46 mm)
- Max Panel Thickness: 0.350" (8.89 mm)
- Mounting Torque: 15 in-lbs
- Operating Temperature: -40 °C to +85 °C (-40 °F to +185°F)
- Storage Temperature: -40 °C to +100 °C (-40 °F to +212 °F)
- Electrical Connection: 18 AWG anti-capillary wire
- Housing Material: Polycarbonate (UL 94V-0)
- Lens Material: Polycarbonate (UL 94V-0)
- Wire Leads Length: 6"
- Lock Washer Material: White Nickel Plated Bronze
- Nut Material: White Nickel Plated Brass
Buy the 657-2465-303F DIALIGHT Bi-Color Panel Mount Indicator | myMectronic
Purchase the DIALIGHT 657-2465-303F securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy DIALIGHT 6572465303F?
You can click on the BUY or RFQ button to purchase 6572465303F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6572465303F?
You can download the 6572465303F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6572465303F?
DIALIGHT
