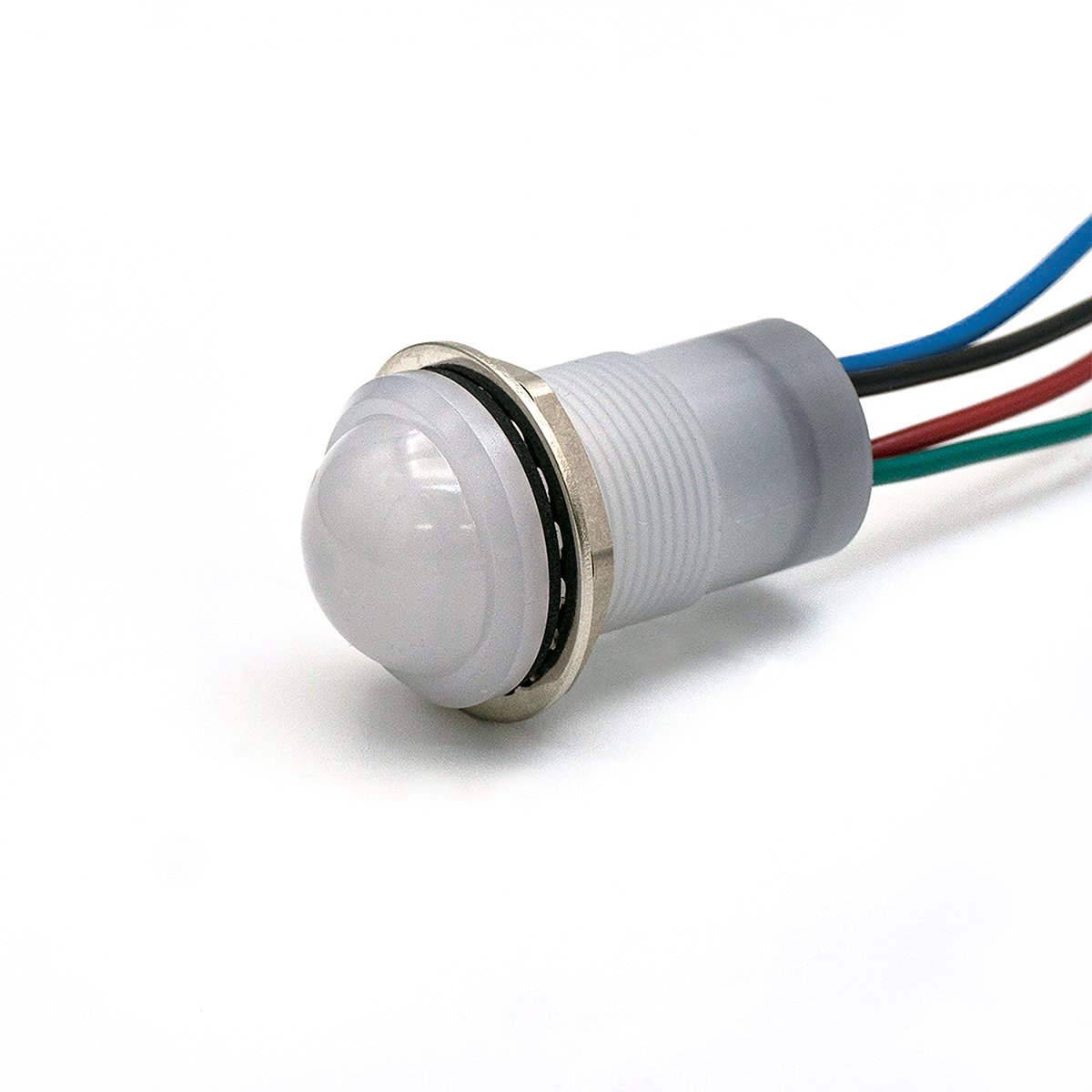

DIALIGHT 6572485303F Bi-Color Panel Mount Indicator
The DIALIGHT 657 Series LED Panel Mount Indicators are robust, watertight devices designed for demanding industrial applications. Their durable polycarbonate housing and sealed construction ensure reliable performance in environments such as electrical control panels, wastewater treatment facilities, buses, and agricultural equipment. Available in various LED colors, these indicators provide clear visual status indication. They are RoHS compliant and operate on a wide voltage range (10-30 VDC), making them versatile for diverse installations. The indicators feature a domed lens and are designed for easy panel mounting with standard hardware.
DIALIGHT 6572485303F Bi-Color Panel Mount Indicator Specifications:
- Lens Style: Domed
- LED Color: Red
- Typical IF: 255
- Typical VF: VDC
- Typical Intensity: mcd
- Voltage: 10–30 VDC
- Mounting Hole Size: 0.687" (17.46 mm)
- Max Panel Thickness: 0.350" (8.89 mm)
- Mounting Torque: 15 in-lbs
- Operating Temp: -40 °C to +85 °C (-40 °F to +185°F)
- Storage Temp: -40 °C to +100 °C (-40 °F to +212 °F)
- Electrical Connection: 18 AWG anti-capillary wire
- Housing Material: Polycarbonate (UL 94V-0)
- Lens Material: Polycarbonate (UL 94V-0)
- Wire Leads: 6"
- Lock Washer: White Nickel Plated Bronze
- Nut: White Nickel Plated Brass
