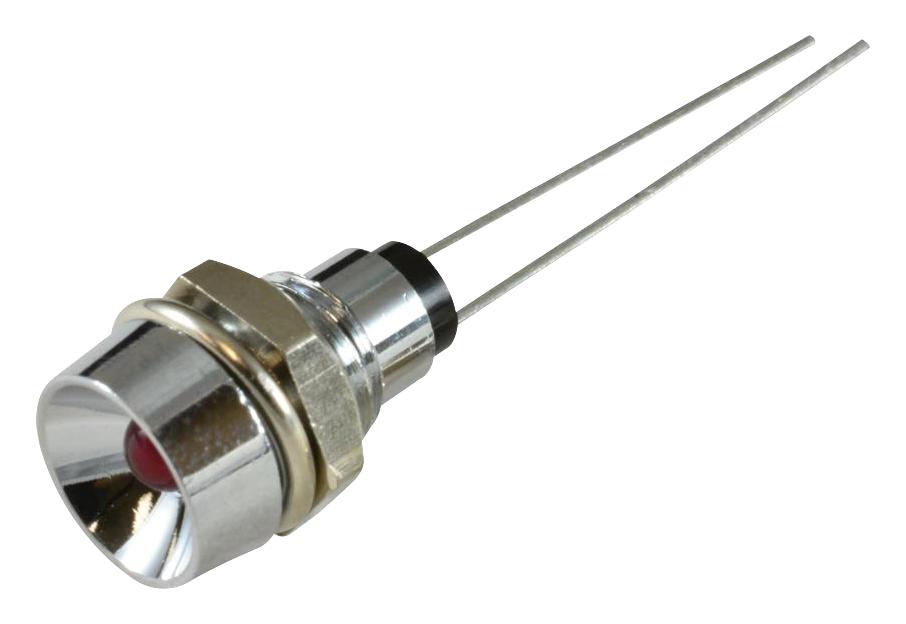

DIALIGHT 6762111110F Panel Mount Indicator
Dialight's 676 series panel mount indicators are designed for a wide range of applications including main power indication, remote power indication, maintenance and warning indication, and instrumentation. These indicators boast low power consumption, utilizing up to 90% less energy than incandescent alternatives, and offer a long operational life of up to 100,000 hours. Available in red, green, orange, blue, and white, the 676 series provides flexibility in design and functionality, with options for both recessed and protruding LED configurations. Their robust construction, featuring a chrome-plated brass housing, ensures durability in demanding industrial environments.
DIALIGHT 6762111110F Panel Mount Indicator Specifications:
- Mounting hole size: 0.244" (6.2mm)
- Max panel thickness: 0.138" (3.5mm)
- Mounting torque: 0.362 lbs/ft (5 kg/cm)
- Operating voltage: 2 (red, orange) & 3.3 (green, blue) VDC
- Operating temperature: -22°F to +185°F (-30°C to +85°C)
- Storage temperature: -40°F to +212°F (-40°C to +100°C)
- Electrical connection: Through leads
- Construction: Housing: Chrome plated brass
- Typical Intensity (Red): 5650 mcd
- Typical Intensity (Green): 11520 mcd
- Typical Intensity (Orange): 7810 mcd
- Typical Intensity (Blue): 3810 mcd
- Typical Intensity (White): 6220 mcd
- LED Position: Recessed
