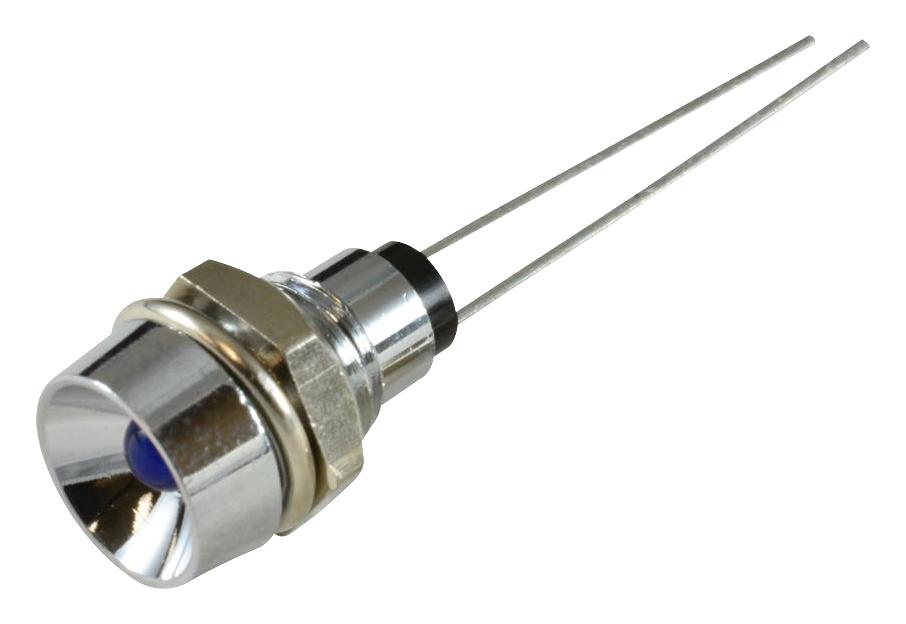

DIALIGHT 6762411110F Panel Mount LED Indicator
The DIALIGHT 676 Series Panel Mount Indicators are designed for a wide range of applications, from main power indication to maintenance and warning systems. These indicators offer significant advantages over traditional incandescent indicators, including low power consumption (up to 90% less energy), no heat generation, and a long operational life. Available in red, green, orange, blue, and white, these indicators can be recessed or protrude from the housing, providing flexibility in design. They are ideal for industrial environments requiring reliable and efficient visual signaling.
DIALIGHT 6762411110F Panel Mount LED Indicator Specifications:
- Mounting hole size: 0.244" (6.2mm)
- Max panel thickness: 0.138" (3.5mm)
- Mounting torque: 0.362 lbs/ft (5 kg/cm)
- Operating voltage: 2 (red, orange) & 3.3 (green, blue) VDC
- Operating temperature: -22°F to +185°F (-30°C to +85°C)
- Storage temperature: -40°F to +212°F (-40°C to +100°C)
- Electrical connection: Through leads
- Construction: Housing: Chrome plated brass
- Typical Intensity: Varies by color (see table)
- LED Position: Protruding/Recessed (see table)
Buy the 676-2411-110F DIALIGHT Panel Mount LED Indicator | myMectronic
Purchase the DIALIGHT 676-2411-110F Panel Mount Indicator securely and efficiently through our online platform.
