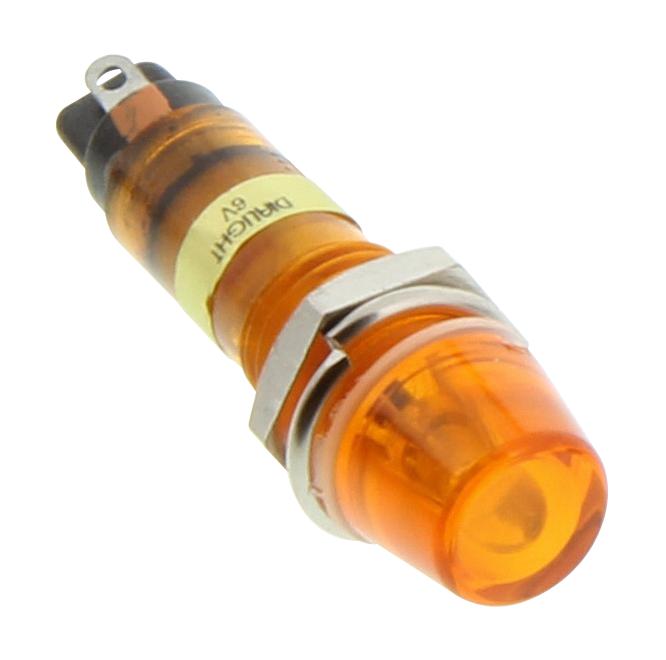

DIALIGHT 6773332323F Watertight Panel Mount Indicator
The DIALIGHT 677 Series Watertight Panel Mount Indicators provide robust and reliable visual indication in demanding industrial environments. These indicators feature low power consumption, a long operational life (up to 100,000 hours), and are available in multiple colors (red, green, orange, and blue). They are suitable for applications such as main power indication, remote power indication, status indication, maintenance, and warning indication. The indicators are designed for front panel mounting and offer recessed, protruding, and internal LED options, ensuring versatility in various installations. Constructed with chrome-plated brass and polycarbonate housing, these indicators are built to withstand harsh conditions and provide long-lasting performance.
DIALIGHT 6773332323F Watertight Panel Mount Indicator Specifications:
- Mounting hole size: 0.283” (7.2mm)
- Max panel thickness: See part numbers
- Mounting torque: 0.362 lbs/ft (5 kg/cm) Figure 3 only - 0.217 lbs/ft (3 kg/cm)
- Operating voltage: 6, 12 & 24 VDC
- Operating temperature: -4°F to +167°F (-20°C to +75°C)
- Storage temperature: -40°F to +212°F (-40°C to +100°C)
- Electrical connection: Solder terminals and 6” wire leads
- Housing: Chrome plated brass; Polycarbonate
- LED Positions: PROTRUDING/RECESSED/INTERNAL
- Typical Intensity: 825-700 mcd
- Colors: red, green, orange, and blue
- NEMA rating: 4X
- IP rating: IP66
- Lifecycle: 100K hours
Buy the 677-3332-323F DIALIGHT Watertight Panel Mount Indicator | myMectronic
Securely purchase the DIALIGHT 677-3332-323F Watertight Panel Mount Indicator online for reliable industrial solutions.
Buy Now
Frequently Asked Questions
Where can I buy DIALIGHT 6773332323F?
You can click on the BUY or RFQ button to purchase 6773332323F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6773332323F?
You can download the 6773332323F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6773332323F?
DIALIGHT
