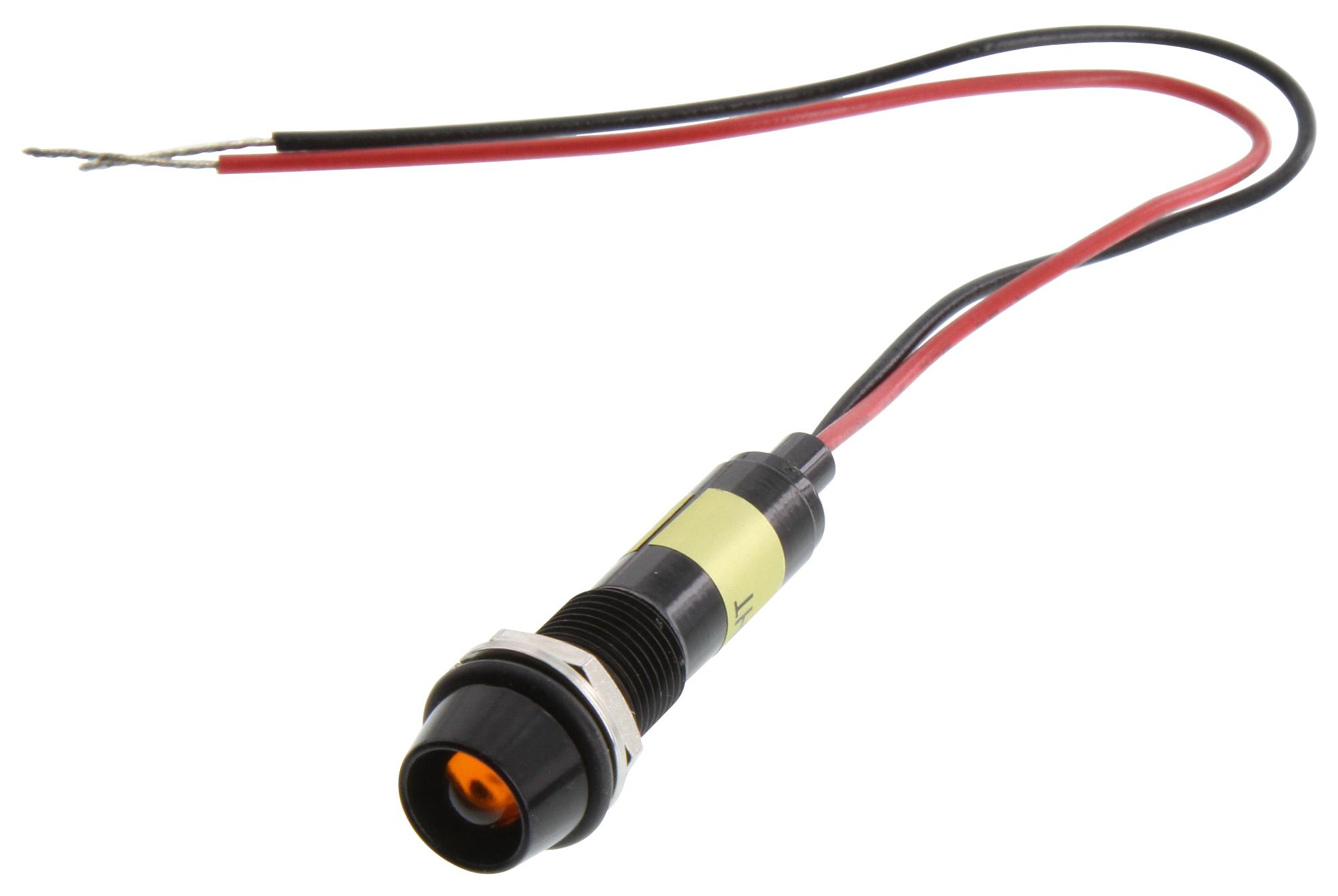

DIALIGHT 6792325343F Watertight Panel Indicator
The Dialight 679 series watertight panel mount indicator features orange LED illumination, operates at 24VDC with 20mA current, and provides 1570mcd brightness. It consumes up to 90% less power than incandescent indicators, generates no heat, and has a lifespan of 100,000 hours. Crafted with black plated brass, it supports front panel mounting with a recessed LED. Certified NEMA 4X and IP66, it fits panels up to 9.5mm thick through a 9.5mm mounting hole, suitable for harsh environments and signaling needs across industrial applications. Operating temp: -20°C to +75°C, wire terminals for easy connection.
DIALIGHT 6792325343F Watertight Panel Indicator Specifications:
- Housing Material: Black plated brass
- Mounting Hole Size: 9.5mm (0.374 inch)
- Panel Thickness: Up to 9.5mm with gasket, 8mm gasket for maximum compatibility
- Operating Voltage: 24VDC
- Current: 20mA
- Brightness: 1570mcd
- Power Consumption: Up to 90% less than incandescent
- Life Span: Up to 100,000 hours
- Certification: RoHS, NEMA 4X, IP66
- Operating Temperature: -20°C to +75°C (-4°F to +167°F)
- Storage Temperature: -40°F to +100°F (-40°C to +212°F)
- Connection: Solder terminals and wire leads
- Color: Orange LED
- Front Mounting: Recessed or protruding LED options
- Suitable for signaling and warning applications in harsh environments
Buy the Buy Dialight 679 Series Part Number 6792325343F Online
Enhance your industrial signaling system with the Dialight Watertight Panel Indicator from the 679 series. Designed for demanding environments, this orange LED indicator offers exceptional durability, low power consumption, and long operational life, ensuring reliable performance for your control panels and warning systems. Easy front panel mounting and certified waterproof and dustproof standards (NEMA 4X, IP66), make it ideal for harsh industrial environments. Fast online ordering guarantees quick delivery for your maintenance and installation needs.
Buy Dialight 679 Series part number 6792325343F now and enjoy reliable, energy-efficient signaling with long-lasting LED technology.
