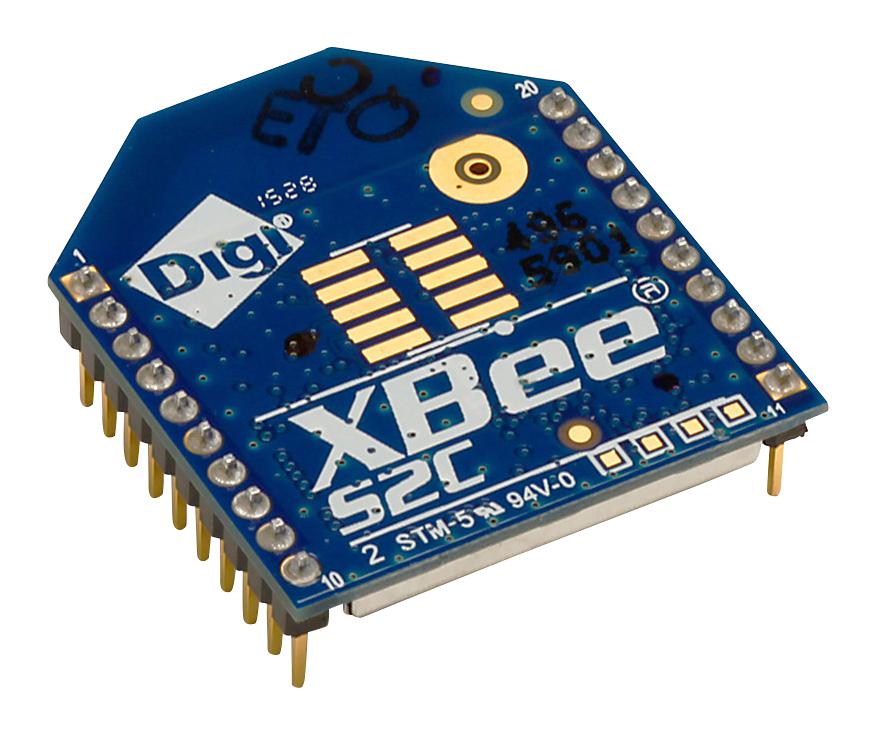

DIGI INTERNATIONAL XB24CAPIT001 Wireless RF Module
The XBee 802.15.4 RF modules are compact, easy-to-configure devices optimized for low-latency and reliable wireless communication across various topologies. They support 2.4GHz frequency band, feature a common footprint for seamless swapping, and enable point-to-multipoint networking. Equipped with industry-leading sleep current of less than 1uA, these modules support over-the-air firmware upgrades via UART or SPI and are upgradable to DigiMesh and ZigBee PRO protocols, making them ideal for industrial, sensor, and wireless serial communication applications. They are available in through-hole and surface-mount options with multiple antenna configurations.
DIGI INTERNATIONAL XB24CAPIT001 Wireless RF Module Specifications:
- Transceiver Chipset: Silicon Labs EM357 SoC
- Data Rate: RF 250 Kbps, Serial up to 1 Mbps
- Range (Indoor/Urban): 200 ft (60 m)
- Range (Outdoor/Line-of-sight): 4000 ft (1200 m)
- Transmit Power: 3.1 mW (+5 dBm) / 6.3 mW (+8 dBm) boost mode
- Receiver Sensitivity: -100 dBm / -102 dBm boost mode
- Serial Interface: UART, SPI
- Frequency Band: ISM 2.4GHz
- Form Factor: Through-Hole, Surface Mount
- Antenna Options: PCB, U.FL, RPSMA, Integrated Wire
- Operating Temperature: -40°C to 85°C
- Dimensions (L x W x H): Through-Hole: 0.960 x 1.087 in, SMT: 0.866 x 1.330 x 0.120 in
- Networking & Security: AES 128-bit encryption, retries/acknowledgements, PAN ID, cluster IDs, endpoints
- Channels: 16
- Power Supply: 2.110 to 3.6V
- Transmit Current: 33 mA@3.3V
- Receive Current: 28 mA@3.3V
- Power-Down Current: <1 uA at 25°C
- Regulatory approvals include FCC, IC, ETSI, RCM, TELEC
Buy the Digi Series XBee 802.15.4: XB24CAPIT001
Purchase the Digi Series XBee 802.15.4 wireless RF module online today to unlock efficient, low-latency wireless communication. These modules support robust point-to-multipoint networks, ZigBee, and DigiMesh protocols with easy over-the-air firmware upgrades. Designed for industrial applications, sensor networks, and serial replacements, they offer low power consumption, multiple antenna configurations, and seamless integration options. Enjoy quick deployment, high reliability, and industry approvals by ordering online now for rapid project advancement and enhanced connectivity solutions.
Buy Digi Series XBee 802.15.4 modules now and experience unmatched reliability and performance in wireless networking.
