EPSON Q33310FE00165 Crystal Oscillator
The crystal oscillator is part of the SPXO SG-310 series, covering frequencies from 2MHz to 80MHz with supply voltages of 1.8V, 2.5V, or 3.3V and typical current consumption of 15mA. Designed for high stability, it offers a compact size of 3.2 x 2.5 x 1.05 mm, making it suitable for various electronic applications. Its features include frequency tolerance, low power usage, and CMOS output compatibility, ensuring precise and reliable oscillation for modern digital systems and communication devices.
EPSON Q33310FE00165 Crystal Oscillator Specifications:
- Frequency range: 2MHz to 80MHz
- Supply voltage: 1.8V / 2.5V / 3.3V
- Current consumption: 15mA typical
- External dimensions: 3.2 x 2.5 x 1.05 mm
- Output type: CMOS
- Output load: 15 pF maximum
- Rise/Fall time: 4ns max
- Start-up time: 2ms max
- Frequency tolerance: ±25 x 10^-6
- Aging: ±10 x 10^-6 per year
- Operating temperature: -40°C to +85°C
- Storage temperature: -40°C to +125°C
- Standby current: 0.2μA typical
- Output enable/disable: logic compatible
- Jitter and symmetry: specified for stability and signal integrity

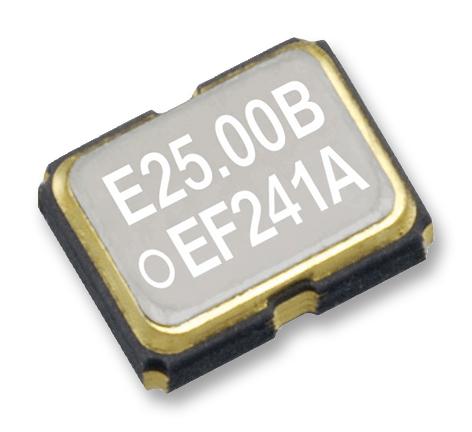

Buy the Buy Epson Q33310FE00165 Crystal Oscillator Part Number Q33310FE00165 Online
Purchase the Epson Q33310FE00165 crystal oscillator online to ensure high stability and precise frequency control for your electronic devices. This compact oscillator supports a wide frequency range from 2MHz to 80MHz with various supply voltages, making it ideal for digital systems, communication, and networking equipment. Its low power consumption, quick startup, and CMOS output make it a versatile choice for engineers seeking reliable and accurate timing solutions. Order now to enhance your project's performance efficiently and confidently.
Buy Epson Q33310FE00165 crystal oscillator now and experience unmatched stability, low power consumption, and reliable performance in your electronic projects.
Frequently Asked Questions
Where can I buy EPSON Q33310FE00165?
You can click on the BUY or RFQ button to purchase Q33310FE00165 from an authorized EPSON distributor.
How do I troubleshoot issues or seek technical support for part Q33310FE00165?
You can download the Q33310FE00165 datasheet or visit the EPSON website for support.
Who is the manufacturer of Q33310FE00165?
EPSON
