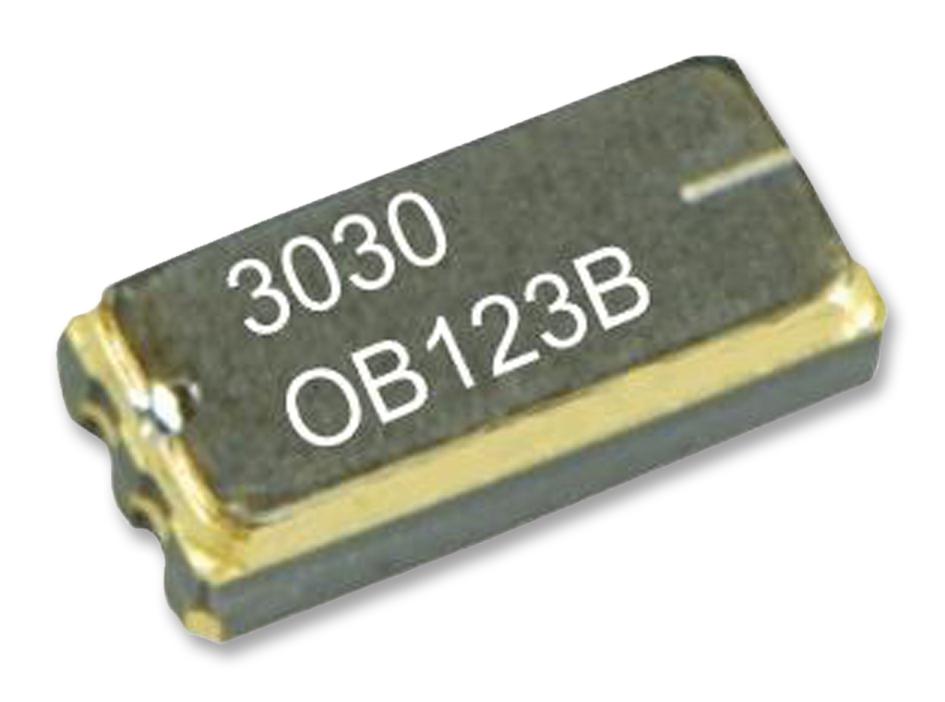

EPSON X1B0002110001 Crystal Oscillator
This is a 32.768 kHz crystal oscillator designed for efficient, adjustment-free operation with low power consumption. It features a built-in crystal unit, a C-MOS IC for reduced current use, and a VIO control for swing amplitude regulation. Suitable for 1.5 V to 5.5 V power supplies, it operates across -40°C to +85°C ambient temperature. The device offers stable frequency tolerance of +5 to +25 ppm at 25°C, with a temperature coefficient of +10 to -120 ppm. Ideal for timing and clock applications in electronic devices, ensuring precise and reliable timing signals.
EPSON X1B0002110001 Crystal Oscillator Specifications:
- Frequency: 32.768 kHz
- Supply Voltage Range: 1.5 V to 5.5 V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -55°C to +125°C
- Frequency Tolerance: +5 to +25 ppm at 25°C
- Frequency Temperature Coefficient: +10 to -120 ppm from -20°C to +70°C
- Output Voltage Swing: VIO controls amplitude
- Max Power Consumption: 2 mA at 3.3 V
- Capacitance: 15 pF Max CMOS load
- Vio Voltage Level: 45% to 55% of Vcc
- Pin Configuration: 4 pins (GND, OUT, VCC, and control pin)
- Provides a stable clock signal for timing in digital circuits
- Includes bypass capacitor recommendation: 0.01uF to 0.1uF near power source
Buy the SEIKO EPSON CORPORATION 0001 – Reliable Crystal Oscillator for Industrial Applications
Enhance your electronic projects with the high-precision crystal oscillator. Designed for reliable, adjustment-free operation, it features low power consumption and wide temperature range. Suitable for clocks, timers, and other timing applications in industrial and consumer electronics, ensuring stability and accuracy. Order the SEIKO EPSON SERIES X1B0002110001 now online and benefit from fast delivery, quality assurance, and technical support for your critical timing requirements.
Order your SEIKO EPSON SERIES X1B0002110001 crystal oscillator today and ensure highly accurate timing signals for your industrial devices.
Frequently Asked Questions
Where can I buy EPSON X1B0002110001?
You can click on the BUY or RFQ button to purchase X1B0002110001 from an authorized EPSON distributor.
How do I troubleshoot issues or seek technical support for part X1B0002110001?
You can download the X1B0002110001 datasheet or visit the EPSON website for support.
Who is the manufacturer of X1B0002110001?
EPSON
