EPSON X1G005961003112 Industrial Crystal Oscillator
SEIKO Epson's SGxxxxCAN and SG-210STF series are CMOS output crystal oscillators designed for high reliability in applications like IoT, wearables, medical, industrial automation, and data storage. They feature a wide operating voltage range from 1.6 V to 3.63 V, low power consumption, and an extended temperature range up to 105 °C. Available in multiple package sizes from 2.0 x 1.6 mm to 7.0 x 5.0 mm, they offer stable frequency output for precise timing needs across diverse environments.
EPSON X1G005961003112 Industrial Crystal Oscillator Specifications:
- Frequency: 4 MHz to 72 MHz, with 20 standard frequencies including 12.288 MHz, 24 MHz, 25 MHz, 50 MHz, 72 MHz
- Output: CMOS logic compatible
- Supply Voltage: 1.6 V to 3.63 V, depending on frequency and temperature
- Operating Temperature: -40 °C to +105 °C, extended to +85 °C for some models
- Package Sizes: 2.0 x 1.6 mm (SG2016), 7.0 x 5.0 mm (SG-210STF) and other intermediate sizes
- Package Material: Plastic with Au plating terminals
- Frequency Tolerance: ±50 x 10^-6, with variations for temperature ranges -20 °C to +70 °C, -40 °C to +85 °C, -40 °C to +105 °C
- Power Consumption: Low current, specifics vary by model and frequency
- Outline Dimensions: As specified per package, with detailed pinout and mounting recommendations
- Certifications: UL Listed, CSA Certified, RoHS Compliant
- Application environments include IoT, medical devices, industrial automation, and data storage systems
- Reflow profiles: Follow IPC/JEDEC J-STD-020D.1 specifications for reliable mounting

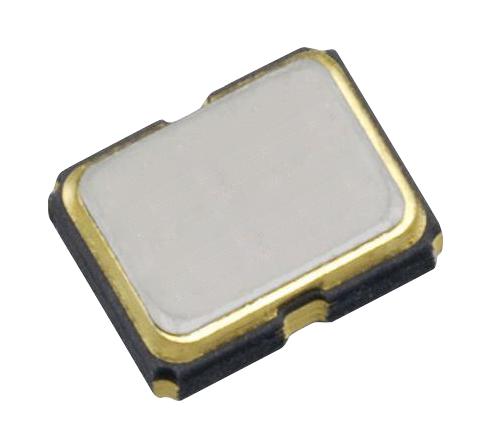

Buy the Buy SEIKO EPSON CMOS Crystal Oscillator Part Number X1G005961003112 Online
Order the SEIKO EPSON CMOS crystal oscillator X1G005961003112 today online. Perfect for IoT, medical, and industrial automation applications requiring precise timing. Featuring a wide voltage range from 1.6 V to 3.63 V and temperature tolerance up to 105 °C, it provides stable operation across various environments. Available in multiple compact sizes, this oscillator guarantees high reliability, low power consumption, and excellent frequency stability. Ensure optimal system performance — buy now for fast delivery and competitive pricing.
Get SEIKO EPSON X1G005961003112 today—designed for high stability, low power consumption, and reliable performance in demanding environments.
Frequently Asked Questions
Where can I buy EPSON X1G005961003112?
You can click on the BUY or RFQ button to purchase X1G005961003112 from an authorized EPSON distributor.
How do I troubleshoot issues or seek technical support for part X1G005961003112?
You can download the X1G005961003112 datasheet or visit the EPSON website for support.
Who is the manufacturer of X1G005961003112?
EPSON
