IQD FREQUENCY PRODUCTS LFSPXO017885 Crystal Oscillator

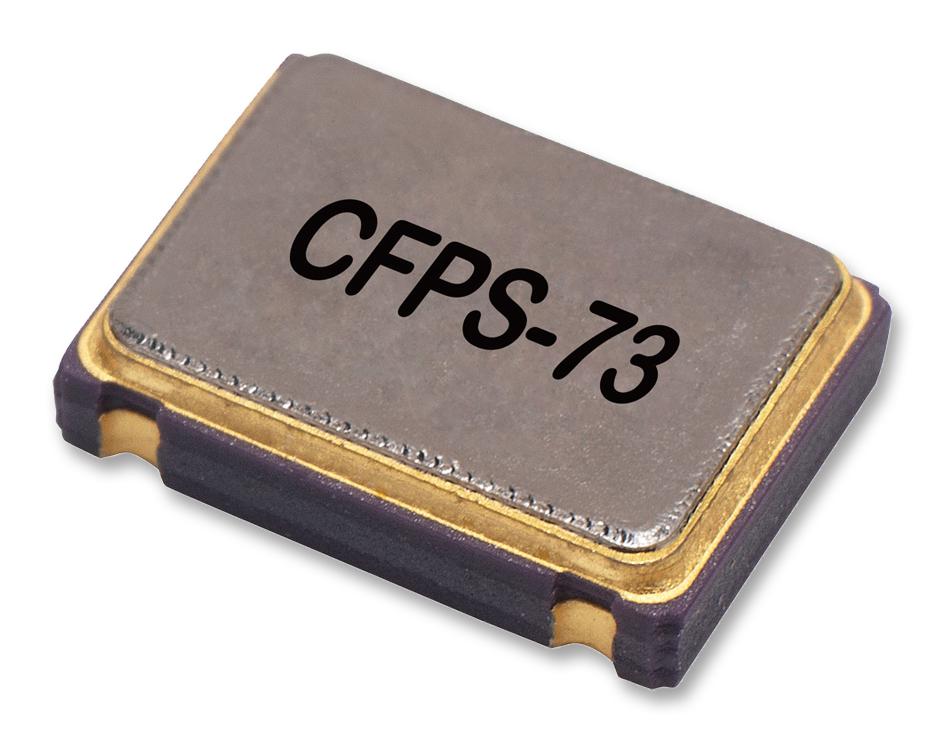

This is a standard 7 x 5mm crystal oscillator with a ceramic package and hermetically sealed metal lid, model CFPS-73. It operates at 40.0MHz frequency with a tolerance and stability suitable for precision timing applications. It supports an operating temperature range of -40°C to 85°C and storage from -55°C to 125°C. The device draws up to 20mA, with output compatibility for HCMOS, rise and fall times of 10ns, and a duty cycle of 45/55. It features low standby current, shock and vibration resistance per MIL standards, and RoHS and REACH compliance. Packaged in tape and reel for easy automation, with an alternative packaging option available.
IQD FREQUENCY PRODUCTS LFSPXO017885 Crystal Oscillator Specifications:
- Frequency: 40.0MHz
- Frequency Tolerance: inclusive at 25°C
- Frequency Stability: +50.00ppm
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -55°C to 125°C
- Supply Voltage: 3.3V ±10%
- Current Draw: 20mA max
- Output Compatibility: HCMOS
- Rise and Fall Time: 10ns max
- Duty Cycle: 45/55
- Standby Current: 10µA max
- Shock Resistance: MIL-STD-202, Method 213, Condition E
- Vibration Resistance: MIL-STD-883, Method 2007, Condition A
- Package Type: Reel Tape according to EIA-481-D
- Dimensions: 7.2mm max length, 5mm typical width
- Sealed hermetically in ceramic package with metal lid
- RoHS and REACH compliant
- Pack Size: 1,000 units
Buy the Buy IQD Frequency Products Oscillator Part Number LFSPXO017885 Online
Purchase the IQD Frequency crystal oscillator LFSPXO017885 online today and benefit from fast delivery, quality assurance, and competitive prices. This precision 40MHz oscillator features a hermetic ceramic package, low power consumption, and robust design suitable for demanding industrial and electronic applications. Its HCMOS output and low jitter make it ideal for timing, synchronization, and frequency control in communication equipment, industrial automation, and test systems. Shop now to enhance your projects with this reliable, RoHS and REACH compliant oscillator, ensuring long-term performance and stability.
Order your IQD Frequency oscillator LFSPXO017885 today and ensure your timing circuits operate reliably with this high-stability crystal oscillator.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFSPXO017885?
You can click on the BUY or RFQ button to purchase LFSPXO017885 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFSPXO017885?
You can download the LFSPXO017885 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFSPXO017885?
IQD FREQUENCY PRODUCTS
