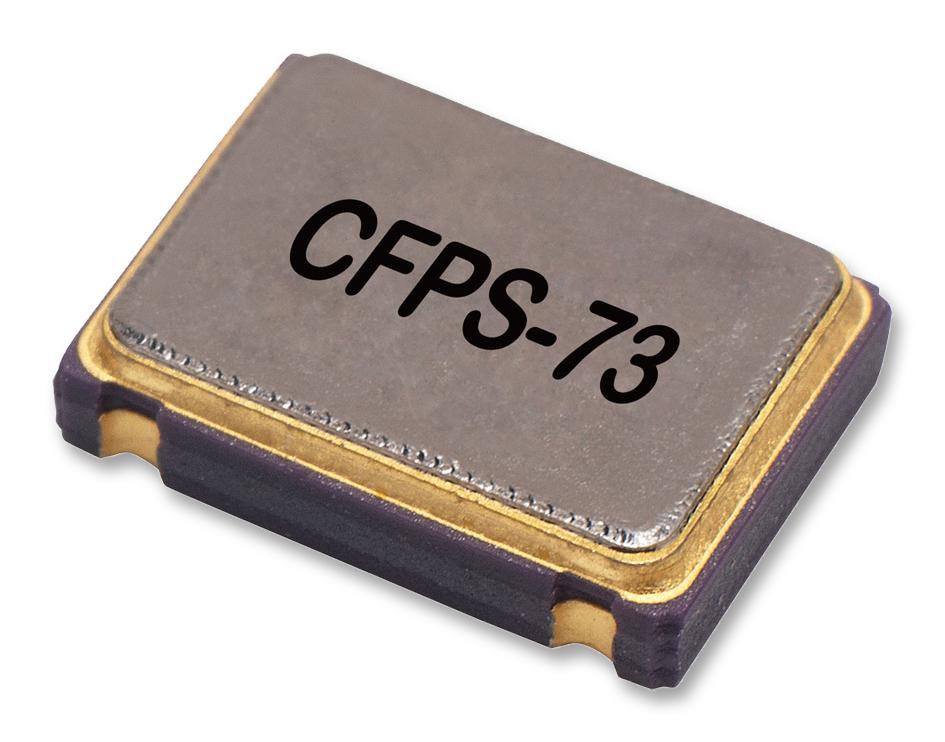

IQD FREQUENCY PRODUCTS LFSPXO018534 Crystal Oscillator
This high-performance crystal oscillator offers a frequency range from 500 kHz to 157 MHz with excellent stability of +20 ppm to 100 ppm. Encased in a hermetically sealed ceramic package with a slim 7 x 5 mm footprint, it features low jitter, phase noise at 125MHz measuring -54 dBc at 10Hz and RMS jitter of 52 fs, ensuring reliable operation across industrial temperature ranges of -40 to 85°C. Its flexible output options include HCMOS compatibility, with adjustable drive capability from 15 pF to 50 pF, suitable for demanding applications in telecommunications, instrumentation, and embedded systems.
IQD FREQUENCY PRODUCTS LFSPXO018534 Crystal Oscillator Specifications:
- Frequency Range: 500 kHz to 157 MHz
- Frequency Stability: +20 ppm to 100 ppm
- Aging: +3 ppm per year max
- Supply Voltage: 3.3V ±10%
- Operating Temperature: 0 to 70°C; -40 to 85°C
- Shock Resistance: MIL-STD-202, Method 213, Condition E
- Vibration Resistance: MIL-STD-883, Method 2007, Condition A
- Output Compatibility: HCMOS
- Output Drive Capability: 0.5MHz to 50MHz 45/55 duty cycle; 50MHz to 80MHz 30 pF max; 80MHz to 157MHz 15 pF max
- Standby Current: Max 10 μA
- Phase Noise @125MHz: -54 dBc at 10Hz, -92 dBc at 100Hz, -130 dBc at 1kHz, -149 dBc at 10kHz, -159 dBc at 100kHz, -163 dBc at 1MHz
- RMS Phase Jitter @125MHz: Typical 52 fs
- Mechanical Dimensions: 7.2 mm max length
- Pack Style: Bulk, Tape & Reel, Cutt
- Weight: 44 g
Buy the Buy High-Precision Hermetic Crystal Oscillator Part Number LFSPXO018534 Online
Purchase the high-quality hermetic crystal oscillator LFSPXO018534 online today. With a frequency range from 500kHz to 157MHz, it provides excellent stability, low jitter, and reliable performance in harsh environments. Its compact 7x5mm ceramic package with hermetic sealing ensures durability and consistent operation across industrial temperatures. Ideal for telecommunications, instrumentation, and embedded systems, this oscillator features HCMOS output, adjustable drive capability, and low power consumption. Secure prompt delivery and support for your electronic designs by ordering now.
Order your IQD Frequency Products hermetic crystal oscillator LFSPXO018534 today and enhance your electronic projects with reliable, low-noise timing solutions.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFSPXO018534?
You can click on the BUY or RFQ button to purchase LFSPXO018534 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFSPXO018534?
You can download the LFSPXO018534 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFSPXO018534?
IQD FREQUENCY PRODUCTS
