IQD FREQUENCY PRODUCTS LFSPXO021270 Crystal Oscillator

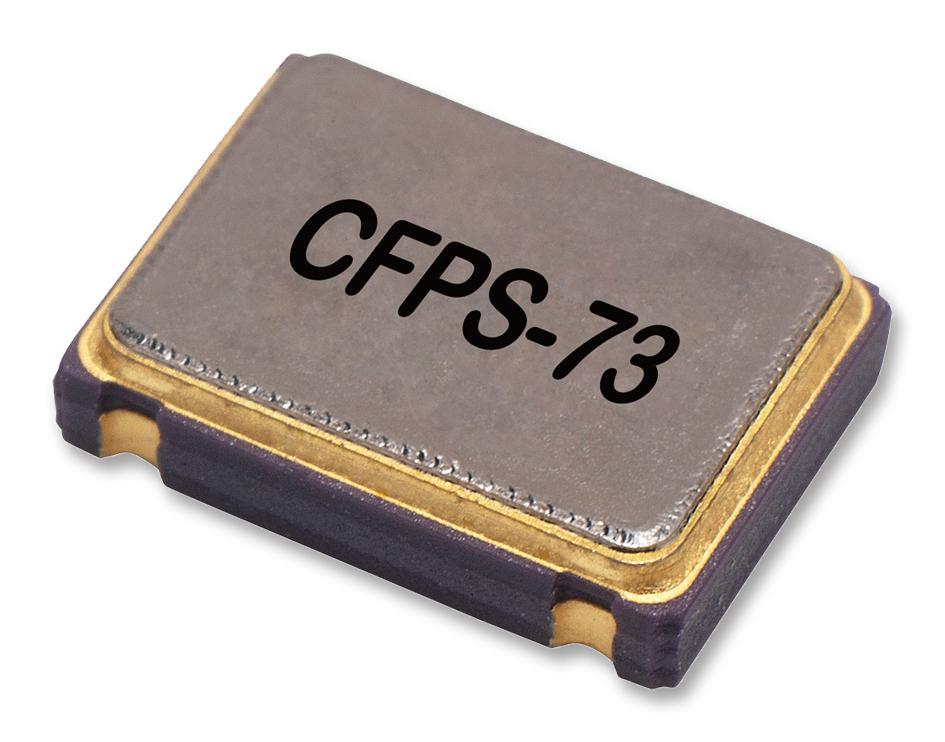

This high-precision crystal oscillator features a 7x5mm ceramic package with a hermetically sealed metal lid, ensuring durability and stability in various environments. Operating at 24.0MHz with a frequency tolerance of INCLUSIVE @ 25°C and a stability of +50.00ppm, it supports a supply voltage of 3.3V with a tolerance of +10%. The oscillator provides HCMOS output with a maximum current draw of 12mA, rise and fall times of 10ns, and a duty cycle of 45/55. Suitable for demanding industrial, communications, and timing applications, it complies with RoHS and REACh standards, with environmental resilience to shock and vibration.
IQD FREQUENCY PRODUCTS LFSPXO021270 Crystal Oscillator Specifications:
- Frequency: 24.0MHz
- Frequency Tolerance: INCLUSIVE @ 25°C
- Frequency Stability: +50.00ppm
- Operating Temperature Range: -40.00 to 85.00°C
- Storage Temperature Range: -55 to 125°C
- Supply Voltage: 3.3V
- Supply Voltage Tolerance: +10%
- Current Draw: 12mA max
- Output Compatibility: HCMOS
- Output Load: 50pF max
- Rise and Fall Time: 10ns max
- Duty Cycle: 45/55
- Standby Current: 10μA max
- Shock Resistance: MIL-STD-202, Method 213, Condition E
- Vibration Resistance: MIL-STD-883, Method 2007, Condition A
- Compliance: RoHS and REACh
- Packaging: Tape and reel, in accordance with EIA-481-D, pack size 1,000
Buy the IQD 24MHz Oscillator – Reliable Timing Device for Industrial Applications
Enhance your electronic designs with this high-precision 24MHz crystal oscillator, featuring a hermetically sealed ceramic package for durability and stable performance. It operates at 3.3V with a high frequency stability of +50.00ppm, making it ideal for industrial, communications, and timing applications. With a size of 7x5mm, maximum current draw of 12mA, and compliance with RoHS and REACh standards, it delivers reliable operation in harsh environments. Purchase online for fast delivery and integration into your projects.
Get IQD 24MHz oscillator today—built for precision, durability, and reliable timing in industrial environments.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFSPXO021270?
You can click on the BUY or RFQ button to purchase LFSPXO021270 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFSPXO021270?
You can download the LFSPXO021270 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFSPXO021270?
IQD FREQUENCY PRODUCTS
