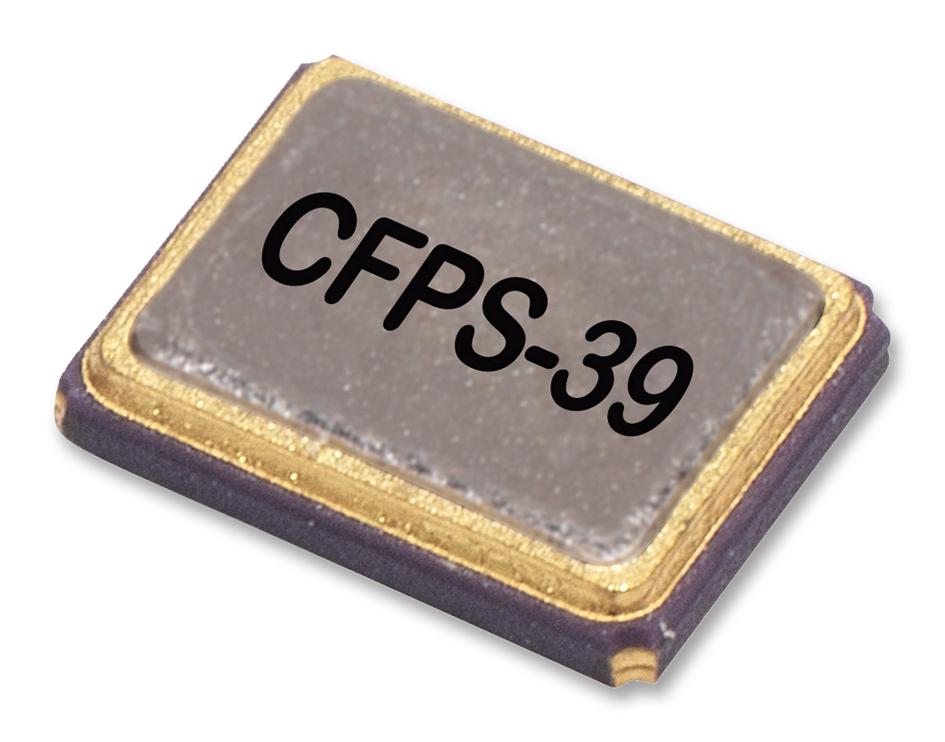

IQD FREQUENCY PRODUCTS LFSPXO025496 Crystal Oscillator
The CFPS-39 is a standard hermetically sealed crystal oscillator measuring 3.2 x 2.5mm, ideal for high-precision timing applications. It operates from 2.0MHz to 50.0MHz with stability ranging from +25.00ppm to +100.00ppm and an aging rate of no more than +3ppm per year at 25°C. Powered by 3.3V ±10%, it performs reliably within -10 to 70°C and -40 to 85°C temperature ranges. The CMOS output with a maximum load of 15pF ensures compatibility with various systems, offering quick start-up and standby modes for efficient power management.
IQD FREQUENCY PRODUCTS LFSPXO025496 Crystal Oscillator Specifications:
- Package Size: 3.2 x 2.5mm hermetically sealed ceramic package
- Frequency Range: 2.0MHz to 50.0MHz
- Frequency Stability: +25.00ppm to +100.00ppm
- Aging: Max +3ppm per year at 25°C
- Supply Voltage: 3.3V ±10%
- Operating Temperature Range: -10°C to 70°C
- Extended Temperature Range: -40°C to 85°C
- Output Type: CMOS
- Output Drive: Compatible with 15pF max load
- Standby Mode: Logic ‘1’ enables output, ‘0’ disables, high impedance state
- Standby Current: Max 10µA
- Start-Up Time: Max 10ms
- Environmental Resistance: Shock MIL-STD-202F, 1000G 0.5ms; Vibration MIL-STD-202F, 20G 4hrs in three planes
- Storage Temp: -55°C to 125°C
Buy the Crystal Oscillator Series CFPS 3.2x2.5mm: LFSPXO025496
Order the Crystal Oscillator now for reliable high-frequency performance in various industrial and electronic applications. Compact and hermetically sealed, this 3.2 x 2.5mm device offers precise frequency stability from 2.0MHz to 50.0MHz, ensuring accurate timing and synchronization. With a supply voltage of 3.3V and extended temperature ranges from -40°C to 85°C, it guarantees dependable operation under harsh conditions. Suitable for designs requiring quick start-up and low power consumption, it is easily integrated into your system for optimal performance.
Get Crystal Oscillator Series CFPS 3.2x2.5mm today—built for precise timing and long-lasting durability.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFSPXO025496?
You can click on the BUY or RFQ button to purchase LFSPXO025496 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFSPXO025496?
You can download the LFSPXO025496 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFSPXO025496?
IQD FREQUENCY PRODUCTS
