IQD FREQUENCY PRODUCTS LFSPXO025497 Crystal Oscillator
The CFPS-39 is a hermetically sealed ceramic crystal oscillator measuring 3.2 x 2.5mm, suitable for high-reliability electronic applications. It operates across a frequency range of 2.0MHz to 50.0MHz with stability from +25.00ppm to +100.00ppm and an aging rate of +3ppm per year at 25°C. Powered by 3.3V and designed for temperatures from -40°C to 85°C, it features CMOS output compatibility, a drive capability of 15pF, and standby current of 10nA. Its robust environmental resistance ensures durability in harsh conditions, suitable for precise timing and synchronization tasks.
IQD FREQUENCY PRODUCTS LFSPXO025497 Crystal Oscillator Specifications:
- Dimensions: 3.2 x 2.5mm ceramic package with hermetic metal lid
- Frequency Range: 2.0MHz to 50.0MHz
- Frequency Stability: +25.00ppm to +100.00ppm
- Aging Rate: +3ppm max per year @ 25°C
- Supply Voltage: 3.3V ±10%
- Operating Temperature: -40°C to 85°C, -10°C to 70°C for some models
- Output Compatibility: CMOS
- Drive Capability: 15pF max
- Standby Current: 10nA max
- Start-Up Time: 10ms max
- Storage Temperature Range: -55°C to 125°C
- Shock Resistance: 1000G, MIL-STD-202F, Method 213B
- Vibration Resistance: 20G, MIL-STD-202F, Method 204D
- Waveform: 50% duty cycle, standard sine wave
- RoHS and REACh compliant
- Pack Style: Tape and reel with 1,000 units, RoHS compliant
- Outline Dimensions: 3.4mm max pad connections layout

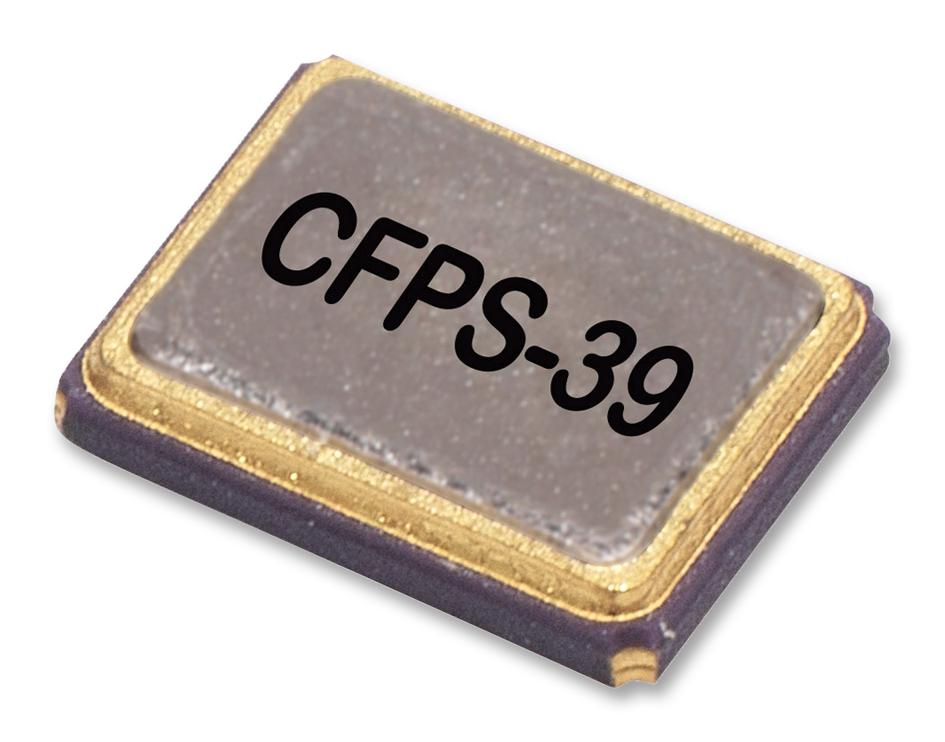

Buy the Buy IQD Frequency Products CFPS-39 Crystal Oscillator Part Number LFSPXO025497 Online
Purchase the IQD Frequency CFPS-39 crystal oscillator online now to benefit from its compact size, high stability, and hermetic sealing. Designed for demanding environments, it offers frequency stability from +25.00ppm to +100.00ppm across a frequency range of 2.0MHz to 50.0MHz. Ideal for timing and synchronization in sensitive electronic devices, its CMOS output and low standby current make it suitable for various applications. Secure your supply today and enhance your project's reliability with this precision component.
Order your IQD Frequency CFPS-39 crystal oscillator today and ensure your electronic projects operate with precise, reliable timing.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFSPXO025497?
You can click on the BUY or RFQ button to purchase LFSPXO025497 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFSPXO025497?
You can download the LFSPXO025497 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFSPXO025497?
IQD FREQUENCY PRODUCTS
