IQD FREQUENCY PRODUCTS LFSPXO050757 Crystal Oscillator
This surface mount crystal oscillator measures 3.2 x 2.5mm and features a hermetically sealed ceramic package with a metal lid, ensuring excellent stability and reliability. Operating at 40.0MHz with a frequency stability of ±25ppm, it functions across temperatures from -40°C to 85°C and exhibits minimal aging of +3ppm annually. It draws 20mA at 3.3V, has a rise and fall time of 5.0ns, and a duty cycle of 45/55%. The device includes standby operation and is compliant with RoHS standards, making it ideal for space-constrained electronic systems requiring precise timing signals.
IQD FREQUENCY PRODUCTS LFSPXO050757 Crystal Oscillator Specifications:
- Package Size: 3.2 x 2.5mm hermetically sealed ceramic package with metal lid
- Frequency: 40.0MHz with ±25ppm stability
- Operating Temperature Range: -40°C to 85°C
- Aging: +3ppm max per year at 25°C
- Supply Voltage: 3.3V ±10%
- Current Draw: 20mA
- Output Type: CMOS
- Output Load: 15pF max (inclusive of aging and equipment capacitance)
- Rise and Fall Time: 5.0ns max
- Duty Cycle: 45/55%
- Start-Up Time: 10ms max
- Standby Operation: Logic '1' (>70% Vs) enables output; Logic '0' (<30% Vs) disables output
- Standby Current: 10A max
- Storage Temperature Range: -55°C to 125°C
- Shock: 1000G, MIL-STD-202F, Method 213B
- Vibration: 20g, MIL-STD-202F, Method 204D, 4hrs
- Packaging: Cutt, 100 pcs per reel, RoHS compliant, reflow temp max 260°C for 10s

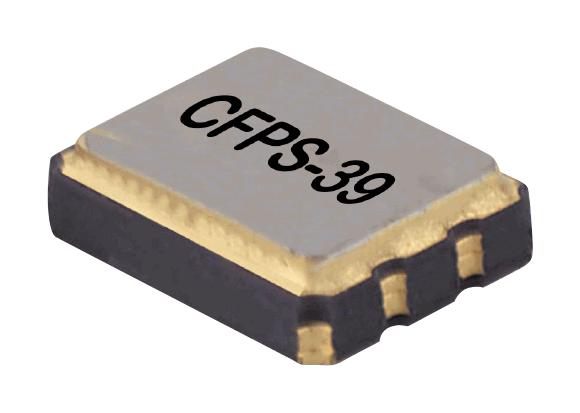

Buy the IQD Series CFPS-39 40MHz Crystal Oscillator: LFSPXO050757
Discover the reliable performance of the IQD Series CFPS-39 crystal oscillator, featuring a compact hermetic ceramic package, 40MHz frequency, and low power consumption. Perfect for space-constrained high-precision electronic devices, this oscillator offers excellent stability over a wide temperature range from -40°C to 85°C, with minimal aging of +3ppm per year. Designed with RoHS compliance and robust shock and vibration resistance, it ensures longevity and optimal operation in demanding environments. Buy online now to secure high-quality, dependable timing solutions for your projects.
Order your IQD Series CFPS-39 40MHz crystal oscillator today and ensure your electronic circuits run with precise frequency stability and dependable performance.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFSPXO050757?
You can click on the BUY or RFQ button to purchase LFSPXO050757 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFSPXO050757?
You can download the LFSPXO050757 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFSPXO050757?
IQD FREQUENCY PRODUCTS
