IQD FREQUENCY PRODUCTS LFSPXO055305 Crystal Oscillator
This surface mount crystal oscillator measures 3.2 x 2.5mm, housed in a hermetically sealed ceramic package with a metal lid. Operating at 12.0MHz, it features excellent frequency stability of ±25ppm and operates within -40°C to 85°C. Powered by 3.3V with a typical current of 7.000mA, it supports CMOS output with a 15pF load, rise and fall times of 5.0ns, and a duty cycle of 45/55%. Equipped with standby functionality, it provides robust environmental resistance, including shock and vibration compliance, suitable for high-reliability industrial applications.
IQD FREQUENCY PRODUCTS LFSPXO055305 Crystal Oscillator Specifications:
- Dimensions: 3.2 x 2.5mm surface mount package
- Frequency: 12.0MHz
- Frequency Stability: ±25ppm
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -55°C to 125°C
- Supply Voltage: 3.3V ±10%
- Current Draw: 7.000mA typical
- Output Type: CMOS
- Output Load: 15pF max
- Rise and Fall Time: 5.0ns max
- Duty Cycle: 45/55%
- Start-Up Time: 10ms max
- Standby Current: 10μA max
- Shock Resistance: 1000G (MIL-STD-202F, Method 213B)
- Vibration Resistance: 20g (MIL-STD-202F, Method 204D)
- RoHS Compliant, MSL rating: Not specified
- Packaging: Cutt, 100 units per pack, taped in reel

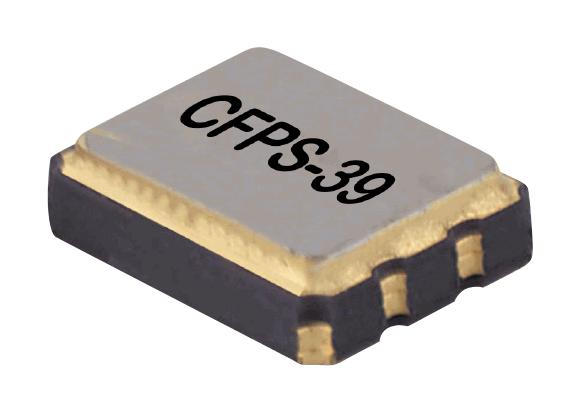

Buy the Buy Crystal Clock Oscillator Part Number LFSPXO055305 Online
Get the Crystal Oscillator LFSPXO055305 now available online for your precision timing needs. This hermetically sealed 12.0MHz crystal offers exceptional frequency stability of ±25ppm, operates seamlessly from -40°C to 85°C, and features low power consumption with a 3.3V supply. Its compact 3.2x2.5mm surface-mount package makes it ideal for space-constrained applications, providing robust environmental resistance, including shock and vibration endurance, suitable for industrial and high-reliability electronic devices. Order today for fast delivery and quality assurance.
Order your Crystal Clock Oscillator LFSPXO055305 today and ensure stable, reliable timing for your electronic projects with high environmental resistance.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFSPXO055305?
You can click on the BUY or RFQ button to purchase LFSPXO055305 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFSPXO055305?
You can download the LFSPXO055305 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFSPXO055305?
IQD FREQUENCY PRODUCTS
