IQD FREQUENCY PRODUCTS LFSPXO055307 Crystal Oscillator
This surface mount crystal oscillator measures 3.2 by 2.5mm and features a hermetically sealed ceramic package with a sealed metal lid. It operates at a frequency of 27.0MHz with a stability of ±25ppm and covers a temperature range from -40°C to 85°C. The device consumes 12mA at 3.3V supply, offers CMOS output compatibility, and has a rise/fall time of 5.0ns. It supports standby mode with minimal current, robust environmental tolerance including shock and vibration, and complies with RoHS standards, making it ideal for precise timing in compact electronic applications.
IQD FREQUENCY PRODUCTS LFSPXO055307 Crystal Oscillator Specifications:
- Frequency: 27.0MHz
- Frequency Stability: ±25ppm
- Operating Temperature Range: -40°C to 85°C
- Supply Voltage: 3.3V ±10%
- Current Draw: 12mA
- Output Compatibility: CMOS
- Drive Capability: 15pF max
- Rise and Fall Time: 5.0ns max
- Duty Cycle: 45/55%
- Start-Up Time: 10ms max
- Standby Current: 10μA max
- Storage Temperature Range: -55°C to 125°C
- Shock Resistance: 1000G, 0.5ms (MIL-STD-202F, Method 213B)
- Vibration Resistance: 20g, 10Hz-2000Hz for 12 hours in 3 planes
- RoHS Compliant, MSL rated: JDEC-STD-033
- Package: Hermetic ceramic with metal lid
- Physical Dimensions: 3.2 x 2.5mm
- Packaging: Reel, 1000 units per reel
- Termination: RoHS compliant NiAu, max 260°C for 10s

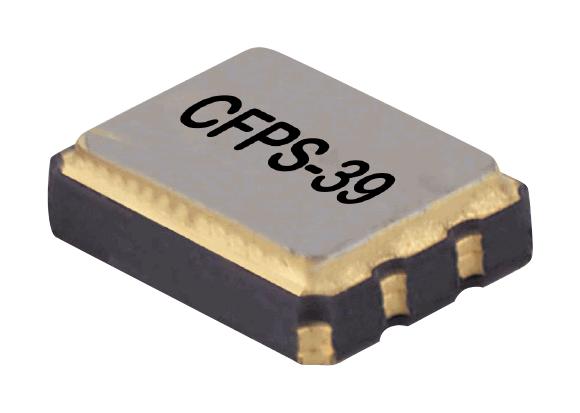

Buy the Buy IQD Frequency Products Crystal Oscillator Part Number LFSPX0055307 Online
Purchase the IQD Frequency Products crystal oscillator today to benefit from its compact size, high stability, low power consumption, and robust environmental tolerance. Perfect for timing in compact electronics, it ensures reliable operation across temperature ranges with quick startup and standby modes. Ideal for applications requiring high precision and durability, this device offers excellent output compatibility, shock, and vibration resistance, making it a versatile choice for industrial, networking, and consumer electronic devices available through online order for quick delivery and technical support.
Buy IQD Frequency Products LFSPX0055307 crystal oscillator now and ensure precise timing with reliable performance in your electronics.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFSPXO055307?
You can click on the BUY or RFQ button to purchase LFSPXO055307 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFSPXO055307?
You can download the LFSPXO055307 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFSPXO055307?
IQD FREQUENCY PRODUCTS
