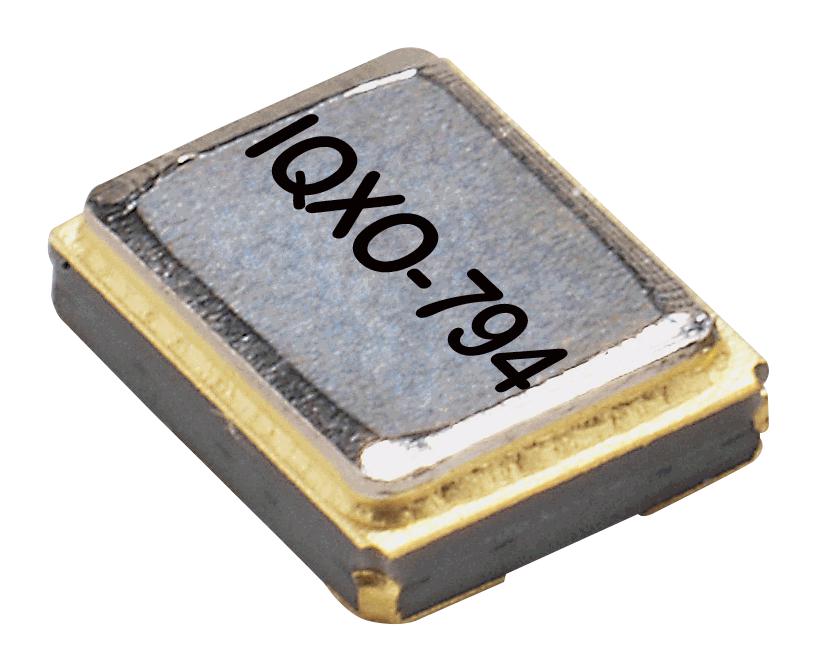

IQD FREQUENCY PRODUCTS LFSPXO056269 Crystal Oscillator
This crystal clock oscillator offers precise frequency stability with a compact 2.5 x 2.0mm ceramic package, hermetically sealed for durability. Operating between 1.0MHz and 50.0MHz, it features low jitter, excellent environmental resistance, and broad temperature ranges from -40°C to 85°C. With RoHS and REACh compliance, it is suitable for high-reliability applications in communication, industrial, and embedded systems. Suitable for applications requiring stable timing signals, low phase jitter, and robust environmental performance, making it ideal for critical timing, synchronization, and oscillator needs.
IQD FREQUENCY PRODUCTS LFSPXO056269 Crystal Oscillator Specifications:
- Size: 2.5 x 2.0mm ceramic package with hermetically sealed metal lid
- Frequency range: 1.0MHz to 50.0MHz
- Frequency stability: +20.00ppm to 100.00ppm
- Ageing: maximum +3ppm per year
- Supply Voltage: 1.8V ±25%
- Operating temperature: -40°C to 85°C
- Storage temperature: -55°C to 125°C
- Output Type: HCMOS compatible with pad connections
- Output Voltage High: 90% of VS min, Low: 10% of VS max
- Drive Capability: 15pF; Standby operation enabled
- Jitter (pk-pk): +80ps typical, Phase jitter (12kHz–20MHz): 1ps max
- Shock resistance: MIL-STD-202/213 or comparable
- Vibration resistance: MIL-STD-883/2007 or comparable
- RoHS and REACh compliant
- Pack styles: Reel (250 & 3000 pcs), R250, R500, Cut, Bulk
- Tape & reel: accordance with EIA-481-D
Buy the IQD Frequency Products 1QXO-794 – Reliable Crystal Oscillator for Industrial Applications
Order the IQD crystal oscillator 1QXO-794 online today for dependable frequency stability from 1.0MHz to 50.0MHz. Designed for industrial applications, it features low jitter, high reliability, and compliance with RoHS and REACh standards. Ideal for communication equipment, embedded systems, and automation needs, this compact ceramic package ensures robust performance in harsh environments. Purchase now to enhance your electronic designs with proven timing precision, superior environmental resistance, and rapid delivery from authorized distributors.
Buy IQD 1QXO-794 oscillator now and ensure stable, high-precision timing for your industrial and embedded systems.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFSPXO056269?
You can click on the BUY or RFQ button to purchase LFSPXO056269 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFSPXO056269?
You can download the LFSPXO056269 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFSPXO056269?
IQD FREQUENCY PRODUCTS
