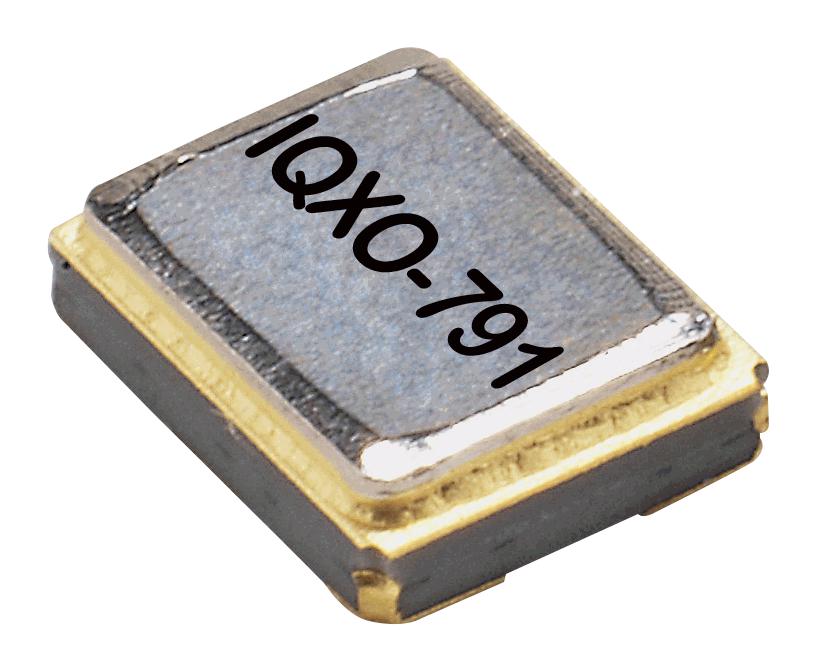

IQD FREQUENCY PRODUCTS LFSPXO056296 High-Precision Oscillator
The 1QXO-791 crystal clock oscillator is a compact 2.5x2.0mm ceramic package device with a hermetically sealed metal lid, operating between 1.0MHz and 66.0MHz. It offers excellent frequency stability from +20.00ppm to 100.00ppm, minimal aging of +3ppm annually, and low power consumption with a standby current of 10μA. Designed for high-precision timing applications, it features HCMOS output, drive capability of 15pF, and supports various temperature ranges including -40 to 85°C. Narrow start-up time and environmental robustness ensure reliable operation in harsh conditions, making it ideal for modern electronic systems.
IQD FREQUENCY PRODUCTS LFSPXO056296 High-Precision Oscillator Specifications:
- Form Factor: 2.5 x 2.0mm ceramic package with hermetic metal lid
- Frequency Range: 1.0MHz to 66.0MHz
- Frequency Stability: +20.00ppm to 100.00ppm
- Aging: +3ppm max per year at 25°C
- Supply Voltage: 3.3V ±10%
- Operating Temperature: 0 to 70°C and -40 to 85°C
- Output Compatibility: HCMOS
- Drive Capability: 15pF
- Output Voltage: VoL: 10% Vs max, VoH: 90% Vs min
- Start-up Time: 10ms max
- Stand-by Current: 10μA max
- Environmental Tolerance: Storage -55 to 125°C, MIL-STD shock and vibration
- Maximum Process Temperature: 260°C for 10 seconds
Buy the Crystal Corporation Series 1QXO-791 Oscillator: LFSPXO056296
Purchase the Crystal Corporation Series 1QXO-791 high-precision oscillator online today to enhance your timing circuits with exceptional frequency stability from 1.0MHz to 66.0MHz. This compact device offers low power consumption, rapid start-up, and environmental resilience suitable for critical applications. Its robust construction, wide temperature range, and accurate output make it ideal for various industrial, telecom, and consumer electronics. Ordering online ensures quick delivery and access to technical support, helping you achieve reliable performance and dependable timing in your next project.
Order your Crystal Corporation Series 1QXO-791 oscillator today and ensure your electronic projects benefit from high stability and low power consumption.
