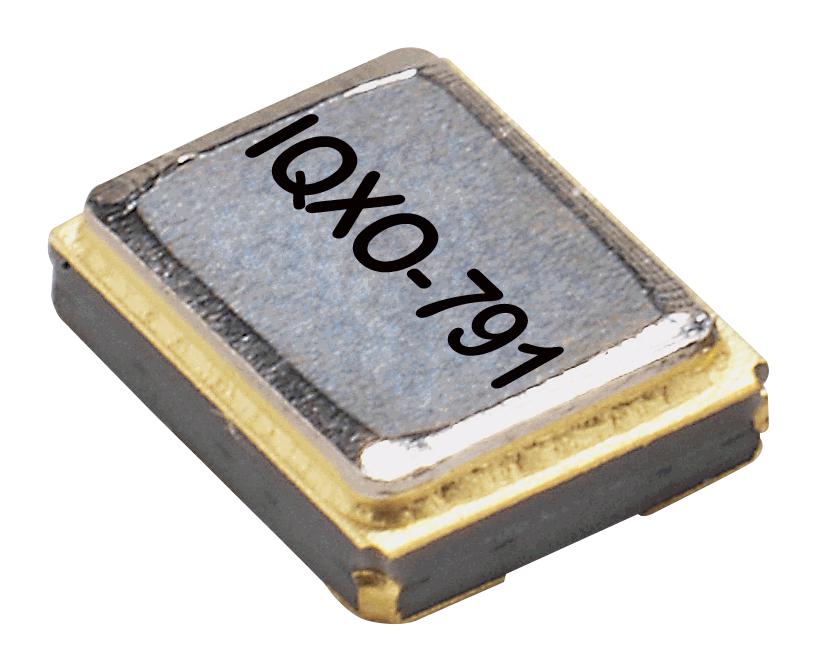

IQD FREQUENCY PRODUCTS LFSPXO056300 Crystal Oscillator
The 1QXO-791 crystal clock oscillator is a compact, hermetically sealed 2.5 x 2.0mm ceramic package device designed for high-precision timing applications. It offers frequency ranges from 1.0MHz to 66.0MHz, with stability up to 100ppm and ageing within 3ppm annually at 25°C. Operating effortlessly over temperatures from 0°C to 70°C or -40°C to 85°C, it features HCMOS output compatible with drive capabilities of 15pF, low standby current of 10μA, and minimal jitter. Its environmental resilience meets MIL-STD standards, making it ideal for robust industrial use.
IQD FREQUENCY PRODUCTS LFSPXO056300 Crystal Oscillator Specifications:
- Package size: 2.5 x 2.0mm ceramic with hermetic metal lid
- Frequency range: 1.0MHz to 66.0MHz
- Frequency stability: +20.00ppm to 100.00ppm
- Ageing: max 3ppm per year at 25°C
- Supply voltage: 3.3V ±10%
- Operating temperature: 0°C to 70°C, -40°C to 85°C
- Output compatibility: HCMOS
- Drive capability: 15pF
- Output voltage levels: VoL max 10%Vs, VoH min 90%Vs
- Start-up time: max 10ms
- Stand-by current: max 10μA
- Period jitter pk-pk: +80ps, 10ps rms phase jitter
- Storage temperature: -55°C to 125°C
- Shock and vibration resistance per MIL-STD-202/883
- Maximum process temperature: 260°C
Buy the Crystal Oscillator Series 1QXO-791 1.0MHz-66.0MHz: LFSPXO056300
Enhance your electronic projects with the Crystal Oscillator series 1QXO-791, offering precise frequency control from 1.0MHz to 66.0MHz. Its hermetically sealed ceramic package ensures stability and reliability across temperature ranges from 0°C to 70°C or -40°C to 85°C. With low jitter, minimal ageing, and compatibility with HCMOS outputs, this oscillator is ideal for high-precision timing in industrial, communications, and computing applications. Easy to integrate, RoHS compliant, and designed for durability, it’s the perfect choice for your critical synchronization needs.
Get Crystal Oscillator Series 1QXO-791 1.0MHz-66.0MHz today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFSPXO056300?
You can click on the BUY or RFQ button to purchase LFSPXO056300 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFSPXO056300?
You can download the LFSPXO056300 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFSPXO056300?
IQD FREQUENCY PRODUCTS
