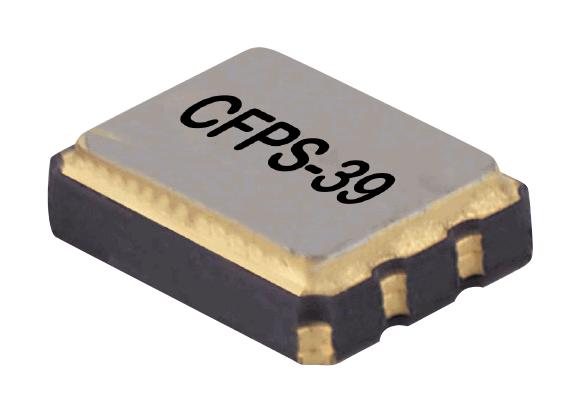

IQD FREQUENCY PRODUCTS LFSPXO058965 Crystal Oscillator
This surface mount crystal oscillator measures 3.2 x 2.5mm and comes in a hermetically sealed ceramic package with a metal lid, ensuring durability and stability. Operating at 24.0MHz with a frequency stability of +25.00ppm across a temperature range of -40°C to 85°C, it offers precise timing for various electronic applications. It features a supply voltage of 3.3V ±10%, draws 12.000mA current, and provides CMOS output with a 15pF load. The oscillator supports standby mode, with a start-up time of 10ms, and withstands environmental shocks and vibrations. RoHS compliant and suitable for high-reliability industrial use.
IQD FREQUENCY PRODUCTS LFSPXO058965 Crystal Oscillator Specifications:
- Frequency: 24.0MHz
- Frequency Stability: +25.00ppm
- Operating Temperature Range: -40°C to 85°C
- Supply Voltage: 3.3V ±10%
- Current Draw: 12.000mA
- Drive Capability: CMOS
- Output Load: 15pF max
- Rise and Fall Time: 5.0ns max
- Duty Cycle: 45/55%
- Start-Up Time: 10ms max
- Storage Temperature Range: -55°C to 125°C
- Shock Resistance: 1000G, 0.5ms
- Vibration Resistance: 20g (10Hz-2000Hz), 12hrs total
- RoHS and REACh Compliant
- Package: 3.2 x 2.5mm hermetically sealed ceramic with metal lid
- Packaging: Cutt, 100 pcs per reel, RoHS Reflow Temp 260°C for 10s
Buy the Crystal Frequency Oscillator Series CFPS-39: LFSPXO058965
Purchase the Crystal Oscillator Series CFPS-39 LFSPXO058965 online today and ensure your electronic devices operate with unmatched timing accuracy. Designed in a compact hermetically sealed ceramic package, it offers excellent stability with a frequency of 24MHz and a temperature range from -40°C to 85°C. The oscillator provides CMOS output, low jitter, fast start-up time, and is RoHS compliant. Ideal for industrial and precision electronics, it is available in tape packaging for easy integration into your assembly line. Order now for reliable performance.
Get Crystal Frequency Oscillator Series CFPS-39 LFSPXO058965 today—built for precision and long-lasting durability in high-reliability circuits.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFSPXO058965?
You can click on the BUY or RFQ button to purchase LFSPXO058965 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFSPXO058965?
You can download the LFSPXO058965 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFSPXO058965?
IQD FREQUENCY PRODUCTS
