A Premier B2B Part Search
IQD FREQUENCY PRODUCTS LFSPXO059271 Crystal Oscillator

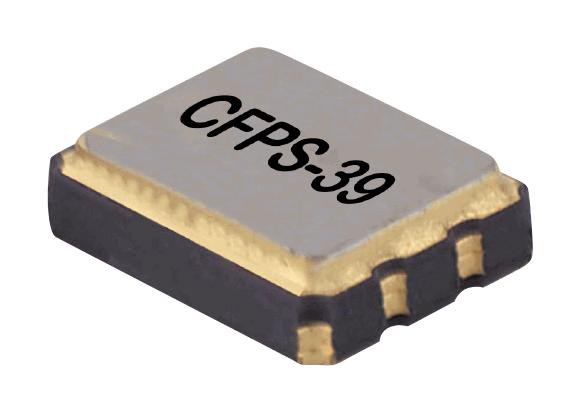

This surface mount crystal oscillator measures 3.2 x 2.5mm and features a hermetically sealed ceramic package with a metallic lid, offering high stability and reliability for precise timing applications. Operating within -40°C to 85°C, it provides a frequency of 10.0MHz with a stability of +25ppm. Its low power consumption of 7.000mA at 3.3V, combined with low jitter and fast start-up time under ideal conditions, makes it suitable for telecommunications, instrumentation, and embedded systems requiring accurate, stable clock signals.
IQD FREQUENCY PRODUCTS LFSPXO059271 Crystal Oscillator Specifications:
- Frequency: 10.0MHz
- Frequency Stability: +25.00ppm
- Operating Temperature Range: -40°C to 85°C
- Ageing: +3ppm max per year at 25°C
- Supply Voltage: 3.3V ±10%
- Current Draw: 7.000mA
- Output Type: CMOS
- Output Capacitance: 15pF max
- Rise and Fall Time: 5.0ns max
- Duty Cycle: 45/55%
- Start-Up Time: 0.7ms typical to 90% amplitude
- Standby Current: 10A max
- Storage Temperature Range: -55°C to 125°C
- Shock Resistance: 1000G, MIL-STD-202F, Method 213B
- Vibration Resistance: 20g, MIL-STD-202F, Method 204D
- RoHS Compliant
- Reflow Soldering Temperature: 260°C for 10s max
- Packaging: Cut, with pack size 100, in tape from reel
Buy the Buy IQD Frequency Products Oscillator Part Number LFSPXO059271 Online
Order the IQD Frequency Products crystal oscillator LFSPXO059271 online today and ensure your electronic project features a compact, reliable, and accurate clock source. This 10MHz oscillator is in a hermetically sealed ceramic package, offering exceptional frequency stability, low power consumption, and excellent environmental resistance. Its rapid start-up ensures quick operation, vital for communication, instrumentation, and embedded systems. RoHS compliant and suitable for reflow soldering, it guarantees quality and durability for industrial and high-precision applications worldwide.
Get IQD Frequency Products oscillator LFSPXO059271 today—designed for precise timing and long-lasting reliability in electronic devices.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFSPXO059271?
You can click on the BUY or RFQ button to purchase LFSPXO059271 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFSPXO059271?
You can download the LFSPXO059271 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFSPXO059271?
IQD FREQUENCY PRODUCTS
