IQD FREQUENCY PRODUCTS LFSPXO063343 Crystal Oscillator

Name: LFSPXO063343 - Electronic Component
Brand: IQD FREQUENCY PRODUCTS
SKU: LFSPXO063343
Price: 1.65 USD
Availability: InStock
Rating: 5.0 (1 reviews)

This surface mount crystal oscillator measures 3.2 x 2.5mm and features a hermetically sealed ceramic package with a metal lid. Operating at 20.0MHz, it offers a frequency stability of +25.00ppm over temperature ranges from -40°C to 85°C and an aging of +3ppm per year at 25°C. Powered by 3.3V with a current draw of 12.000mA, it provides CMOS output, 15pF max load, and a rise/fall time of 5.0ns. Its compact design ensures reliable performance in critical timing applications within industrial, consumer, or communication equipment.

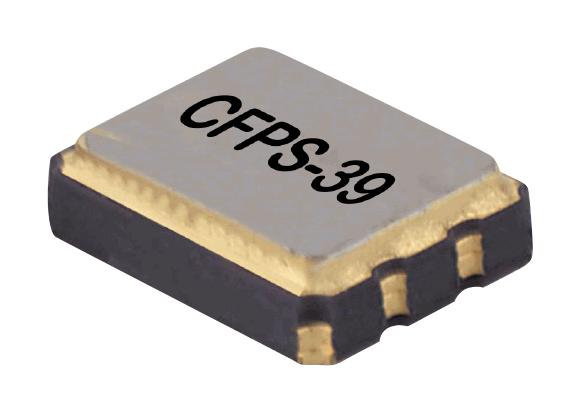

IQD Series Crystal Oscillator: 20MHz Hermetic Ceramic Package

View LFSPXO063343Datasheet [pdf]

IQD FREQUENCY PRODUCTS LFSPXO063343 Crystal Oscillator Specifications:

Package Size: 3.2 x 2.5 mm
Frequency: 20.0MHz
Frequency Stability: +25.00ppm
Operating Temperature Range: -40°C to 85°C
Aging: +3ppm/year at 25°C
Supply Voltage: 3.3V ±10%
Current Draw: 12.000mA
Output Type: CMOS
Output Load: 15pF max
Rise and Fall Time: 5.0ns max
Duty Cycle: 45/55%
Start-Up Time: 10ms max
Standby Current: 10μA max
Storage Temperature: -55°C to 125°C
Shock Resistance: 1000G, 0.5ms
Vibration Resistance: 20g, 10Hz-2000Hz
RoHS Compliant
Reflow Solder Temp: 260°C for 10s

Buy the IQD Series Crystal Oscillator: 20MHz Hermetic Ceramic Package

Enhance your electronic designs with this high-quality 20MHz crystal oscillator, measuring 3.2 x 2.5mm in a hermetically sealed ceramic package. Designed for robust operation, it features a stable frequency of +25.00ppm, low aging of +3ppm/year, and excellent temperature performance from -40°C to 85°C. Powered by 3.3V with a low current of 12mA, it provides CMOS output, quick start-up, and high stability, making it ideal for critical timing in industrial, communication, and consumer devices worldwide.

Buy IQD Series Crystal Oscillator LFSPX0063343C now and experience unmatched reliability and performance in precise timing applications.
