IQD-Frequency-Products LFSPXO063737 Crystal Oscillator

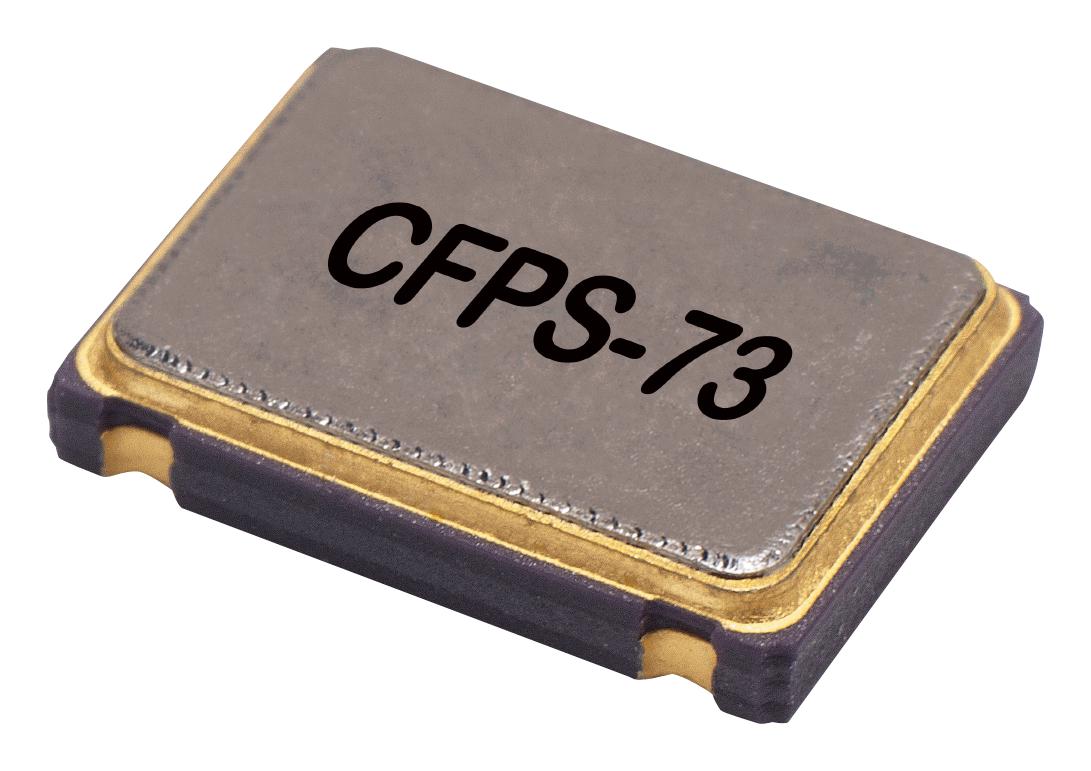

This 12.0MHz crystal oscillator features a hermetically sealed 7 x 5mm ceramic package, ensuring stability and durability. It operates within -20°C to 70°C, with a supply voltage of 3.3V ±10% and consumes approximately 7mA. The device offers HCMOS compatibility, a drive capability of 50pF, and low phase noise with jitter performance. Ideal for precision timing in electronic systems, it meets RoHS and REACh compliance standards. Its packaging includes a reel of 1,000 units, suitable for automated manufacturing.
IQD-Frequency-Products LFSPXO063737 Crystal Oscillator Specifications:
- Frequency: 12.0MHz
- Frequency Stability: +20.00ppm
- Operating Temperature Range: -20°C to 70°C
- Storage Temperature Range: -55°C to 125°C
- Supply Voltage: 3.3V ±10%
- Current Draw: 7.00mA
- Output Compatibility: HCMOS
- Drive Capability: 50pF max
- Rise and Fall Time: 10.0ns max
- Duty Cycle: 45/55
- Phase Noise @125MHz: -54dBc (10Hz), -92dBc (100Hz), -130dBc (1kHz), -149dBc (10kHz), -159dBc (100kHz), -163dBc (1MHz)
- RMS Phase Jitter @125MHz: 52fs typical
- Shock Resistance: MIL-STD-202, Method 213, Condition E
- Vibration Resistance: MIL-STD-883, Method 2007, Condition A
- Environmental Storage Temperature Range: -55°C to 125°C
- RoHS Status: Compliant
- REACH Status: Compliant
- Packaging: Reel of 1,000 units, in accordance with ElA-481-D
Buy the Buy IQD Frequency Crystal Oscillator Part Number LFSPXO063737 Online
Purchase the high-precision crystal oscillator online and benefit from reliable, stable timing in your electronic devices. This 12MHz oscillator features a hermetically sealed ceramic package, ensures excellent phase noise performance and low jitter, and operates within a wide temperature range. It is RoHS and REACh compliant, designed for industrial and embedded applications, and available in a reel of 1,000 units for easy automation. Secure your stock now to enhance your system’s timing accuracy with minimal noise and power consumption.
Order your IQD Frequency SeriesLFSPXO063737 crystal oscillator today and ensure the accuracy and stability your electronic projects require.
Frequently Asked Questions
Where can I buy IQD-Frequency-Products LFSPXO063737?
You can click on the BUY or RFQ button to purchase LFSPXO063737 from an authorized IQD-Frequency-Products distributor.
How do I troubleshoot issues or seek technical support for part LFSPXO063737?
You can download the LFSPXO063737 datasheet or visit the IQD-Frequency-Products website for support.
Who is the manufacturer of LFSPXO063737?
IQD-Frequency-Products
