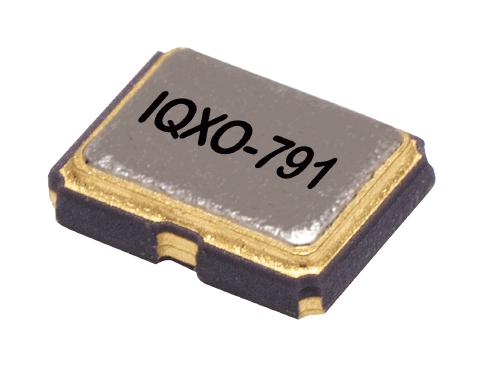

IQD FREQUENCY PRODUCTS LFSPXO064157 Crystal Clock Oscillator
This high-precision crystal clock oscillator operates at 40.0MHz with stability within +25.00ppm, suitable for demanding timing applications. It features a ceramic package with a hermetically sealed metal lid, enabling reliable performance across temperature extremes from -55°C to 125°C. The device consumes 20mA at 3.3V and offers low jitter with period jitter of ±80ps. It supports enable/disable control, low standby current of 10μA, and is RoHS compliant. Designed to withstand shock and vibration, it is ideal for industrial and communications equipment requiring precise, stable oscillation.
IQD FREQUENCY PRODUCTS LFSPXO064157 Crystal Clock Oscillator Specifications:
- Frequency: 40.0MHz
- Frequency Stability: +25.00ppm
- Operating Temperature Range: -20°C to 70°C
- Storage Temperature Range: -55°C to 125°C
- Supply Voltage: 3.3V ±10%
- Current Draw: 20mA
- Output Type: HCMOS
- Output Load: 15pF
- Rise and Fall Time: 7.0ns max
- Start Up Time: 10ms max
- Duty Cycle: 40/60%
- Output Voltage Levels: VoL: 10%Vs max, VoH: 90%Vs min
- Stand-by Current: 10μA max
- Period Jitter (pk-pk): ±80ps
- Phase Jitter (12kHz-20MHz): 1ps rms
- Storage Temperature: -55°C to 125°C
- Mechanical Shock: MIL-STD-883, Method 2002, Condition B
- Vibration: MIL-STD-883, Method 2007, Condition A
- RoHS Reflow Temp: 260°C max for 10 seconds
- RoHS Status: Compliant
- REACH Status: Compliant
- Packaging: Cutt tape, Pack size 100
Buy the Buy Quartz Oscillator Part Number LFSPXO064157 Online
Order the crystal clock oscillator model LFSPXO064157 today and ensure your system maintains accurate timing with exceptional stability and reliability. Designed for industrial and communication devices, this oscillator offers a frequency of 40MHz, low jitter, and a wide temperature range from -55°C to 125°C. Supported by RoHS compliance and robust shock and vibration resistance, it guarantees stable operation in harsh environments. Purchase online now to benefit from fast delivery, detailed technical support, and competitive pricing for your high-performance timing needs.
Buy Quartz Oscillator LFSPXO064157 now and experience unmatched reliability and performance tailored for precise industrial timing applications.
