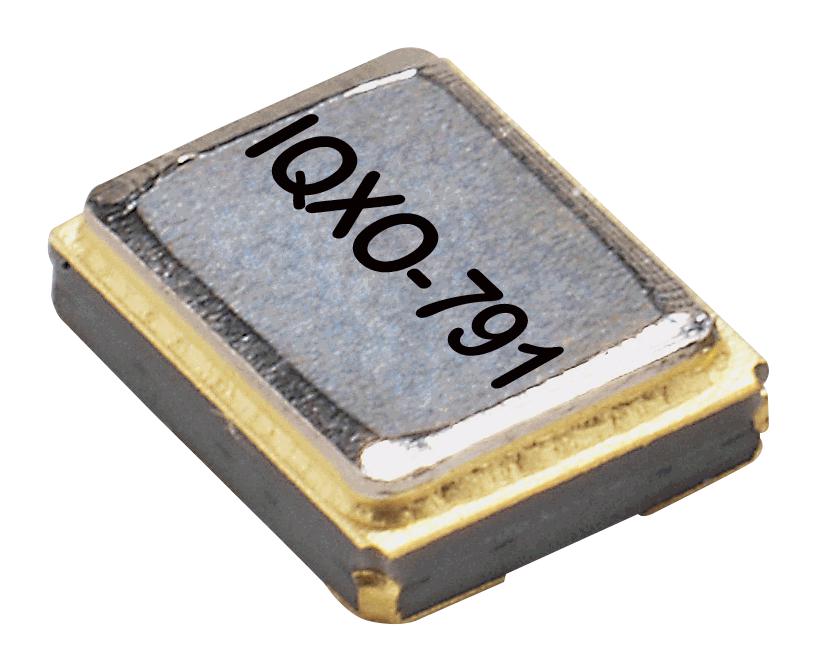

IQD FREQUENCY PRODUCTS LFSPXO066657 Crystal Oscillator
The LFSPXO066657 is a high-performance crystal clock oscillator in a compact 2.5 x 2.0mm ceramic package with a hermetically sealed metal lid. Designed for reliable timing applications, it operates across multiple temperature ranges including 0 to 70°C and -40 to 85°C. It provides output compatibility with HCMOS signals, with a frequency range from 1.0MHz to 66.0MHz, ensuring precise, low jitter signals. Suitable for a variety of electronic and communication systems demanding stability, low phase noise, and minimal aging effects, this oscillator is RoHS and REACh compliant, making it ideal for modern environmentally conscious designs.
IQD FREQUENCY PRODUCTS LFSPXO066657 Crystal Oscillator Specifications:
- Form Factor: 2.5 x 2.0mm ceramic package with hermetically sealed metal lid
- Frequency Range: 1.0MHz to 66.0MHz
- Frequency Stability: +20.00ppm to +100.00ppm
- Aging: +3ppm max per year at 25°C
- Supply Voltage: 3.3V ±10%
- Operating Temperature Range: 0 to 70°C and -40 to 85°C
- Output Compatibility: HCMOS
- Output Drive Capability: 15pF
- Output Voltage Levels: VoL ≤ 10%Vs, VoH ≥ 90%Vs
- Start Up Time: ≤ 10ms
- Stand-by Current: Max 10μA
- Period Jitter (pk-pk): +80ps typ
- Phase Jitter (12kHz to 20MHz): Max 1ps rms
- Storage Temperature Range: -55°C to 125°C
- Shock and Vibration: MIL-STD-202 and MIL-STD-883 compliant
- Maximum Process Temperature: 260°C for 10s
Buy the iQDFrequency Series 1QXO-791 Crystal Oscillator: 1MHz-66MHz
Purchase the iQDFrequency Series 1QXO-791 crystal oscillator online today and enhance your electronic designs with this high-precision, low jitter crystal clock. Its compact size, wide frequency range from 1.0MHz to 66.0MHz, and excellent stability make it ideal for timing-critical applications across communications, industrial, and consumer electronics. RoHS and REACh compliant, it ensures environmental sustainability while delivering consistent performance. With quick delivery options, expert support, and competitive pricing, buy now to improve your device’s reliability and synchronization capabilities effortlessly.
Order your iQDFrequency Series 1QXO-791 crystal oscillator today and ensure your projects have stable, reliable timing for optimal performance.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFSPXO066657?
You can click on the BUY or RFQ button to purchase LFSPXO066657 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFSPXO066657?
You can download the LFSPXO066657 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFSPXO066657?
IQD FREQUENCY PRODUCTS
