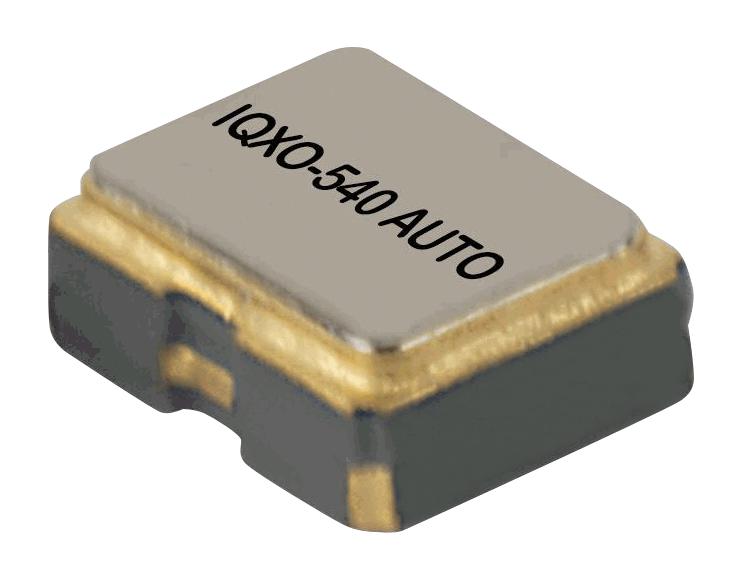

IQD FREQUENCY PRODUCTS LFSPXO071190 Crystal Oscillator
The LFSPXO071190 is a high-reliability ceramic package crystal clock oscillator suitable for automotive applications, qualified to AEC-Q200 and TS 16949 standards. It operates within -40°C to 125°C temperatures, with frequency options from 4.0MHz to 50.0MHz, and supply voltage of 3.3V. Featuring enable/disable output control, low standby current, and RoHS compliance, this oscillator offers stable frequency stability (+25ppm to +50ppm) and robust environmental resistance, making it ideal for automotive and industrial electronics requiring precise timing and reliable operation.
IQD FREQUENCY PRODUCTS LFSPXO071190 Crystal Oscillator Specifications:
- Frequency Range: 4.0MHz to 50.0MHz
- Frequency Stability: +25ppm to +50ppm
- Supply Voltage: 3.3V
- Operating Temperature Range: -40°C to 125°C
- Storage Temperature Range: -55°C to 125°C
- Output Type: CMOS
- Output Compatibility: CMOS logic levels
- Drive Capability: Compatible with standard CMOS inputs
- Enable/Disable Operation: Logic ‘1’ (>70% Vs) enables oscillator; Logic ‘0’ (<30% Vs) disables oscillator
- Standby Current: Max 10nA at -40 to 85°C, 20nA at -40 to 125°C
- Package: Ceramic with hermetically sealed metal lid
- Compliance: RoHS, REACh, AEC-Q200 qualified, TS 16949
- Outline Dimensions: 1,640.4 mm
- Packaging: Tape & reel, bulk, or boxed options
- Environmental Resistance: Suitable for automotive and industrial applications
Buy the Crystal Oscillator Series 1QX0-540 AUTO: LFSPXO071190
Discover our high-performance crystal oscillator series designed for demanding automotive and industrial applications. The LFSPXO071190 offers reliable frequency stability from 4.0MHz to 50.0MHz, operating over -40°C to 125°C temperatures. It features a ceramic hermetically sealed package, low standby current, and comprehensive environmental and chemical compliance, ensuring durability and stability in harsh conditions. Perfect for precision timing in automotive ECUs, industrial controls, and communication systems. Purchase online today for fast delivery and quality assurance.
Order your Crystal Oscillator Series 1QX0-540 AUTO today and ensure your automotive and industrial projects benefit from reliable, high-precision timing components.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFSPXO071190?
You can click on the BUY or RFQ button to purchase LFSPXO071190 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFSPXO071190?
You can download the LFSPXO071190 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFSPXO071190?
IQD FREQUENCY PRODUCTS
