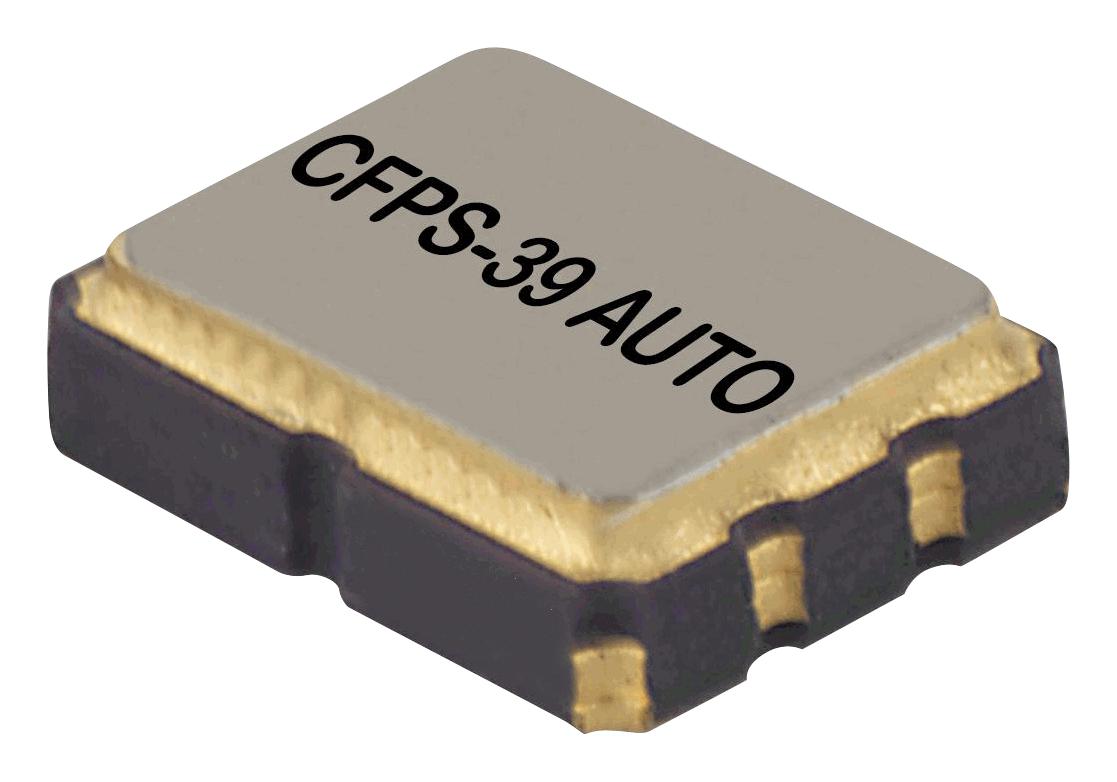

IQD FREQUENCY PRODUCTS LFSPXO071231 Crystal Oscillator
The LFSPXO071231 is a high-reliability ceramic crystal oscillator housed in a hermetically sealed metal package designed for automotive applications. It features stable frequency output from 2.0MHz to 50.0MHz, with excellent frequency stability of typically +25.00ppm, and operates over a wide temperature range of -40°C to 125°C. It is qualified to AEC-Q200 standards, ensuring durability and performance in harsh environments. The oscillator includes enable/disable control for power management, consumes minimal current, and complies with RoHS and REACh standards for environmentally friendly production.
IQD FREQUENCY PRODUCTS LFSPXO071231 Crystal Oscillator Specifications:
- Package: Ceramic with hermetically sealed metal lid
- Frequency Range: 2.0MHz to 50.0MHz
- Frequency Stability: Typically +25.00ppm, up to +50.0ppm
- Supply Voltage: 3.3V ±10%
- Operating Temperature Range: -40°C to 125°C
- Storage Temperature: -55°C to 150°C
- Standby Current: Max 10nA (-40 to 85°C), Max 20nA (-40 to 125°C)
- Output Type: CMOS
- Output Compatibility: CMOS logic levels
- Drive Capability: Suitable for various oscillator outputs
- Output Control: Enable/Disable with logic '1' (>70% Vs) enabled, '0' (<30% Vs) disabled, no connection defaults to enabled
- Compliance: RoHS compliant, REACh compliant
- MSL Rating: Not applicable, packaged in tape & reel or bulk
- Dimensions: Outline approximately 3.24 mm in diameter
- Environmental: Qualified to AEC-Q200, suitable for automotive and harsh environments
Buy the IQD Series CFPS-39 AUTO: Crystal Clock Oscillator LFSPXO071231
Enhance your electronic designs with the IQD Series CFPS-39 AUTO crystal oscillator. Featuring a wide frequency range from 2.0MHz to 50.0MHz, excellent stability, low power consumption, and automotive-grade quality, this oscillator is perfect for automotive, industrial, and harsh environment applications. Its hermetically sealed ceramic package ensures durability, while enable/disable functionality offers power management options. Compliant with RoHS and REACh standards, it provides reliable timing performance across extreme temperature ranges, making it a trusted choice for modern electronic systems.
Order your IQD Series CFPS-39 AUTO oscillator today and ensure reliable, automotive-grade timing for your electronic projects with proven quality.
