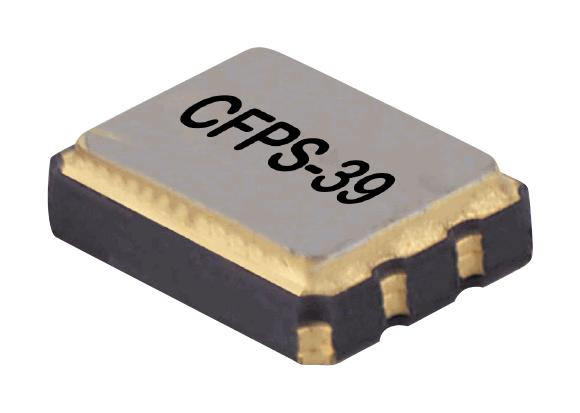

IQD FREQUENCY PRODUCTS LFSPXO072453 Crystal Oscillator
This surface mount crystal oscillator measures 3.2 x 2.5mm and comes in a hermetically sealed ceramic package with a metal lid, ensuring stability and durability. Operating at 26.0MHz with a stability of ±25.00ppm, it supports a supply voltage of 3.3V ±10% and draws 12mA current. It features CMOS output with a drive capacity of 15pF, a rise and fall time of 5.0ns, and a duty cycle of 45/55%. Designed for high reliability, it withstands temperature ranges from -40°C to 85°C and storage from -55°C to 125°C, with shock and vibration resistance compliant with military standards.
IQD FREQUENCY PRODUCTS LFSPXO072453 Crystal Oscillator Specifications:
- Frequency: 26.0MHz
- Frequency Stability: ±25.00ppm
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -55°C to 125°C
- Supply Voltage: 3.3V ±10%
- Current Draw: 12mA
- Output Compatibility: CMOS
- Drive Capability: 15pF max
- Rise and Fall Time: 5.0ns max
- Duty Cycle: 45/55%
- Start-Up Time: 10ms max
- Standby Current: 10μA max
- Shock Resistance: 1000G, MIL-STD-202F, Method 213B
- Vibration Resistance: 20g, MIL-STD-202F, Method 204D, Test Condition D
- Packaging: Reel with 1,000 units, compliant with EIA-481-D
- RoHS and REACH compliant
- Terminations: NiAu, max reflow temperature 260°C for 10s
Buy the IQD Frequency Products LFSPXO072453 – Reliable Crystal Oscillator for Industrial Applications
Purchase the IQD Frequency Products crystal oscillator online today—designed for precision timing in industrial electronics. This 26MHz oscillator features a hermetically sealed ceramic package, ensuring long-term stability and reliable operation across wide temperature ranges from -40°C to 85°C. With a low power consumption of 12mA at 3.3V and a fast start-up time of 10ms, it is ideal for high-precision applications. Its CMOS output with 15pF drive capability ensures compatibility with various circuit designs, making it a vital component for manufacturing, automation, and timing systems.
Get IQD Frequency Products LFSPXO072453 today—built for high stability and exceptional durability in demanding industrial environments.
