IQD FREQUENCY PRODUCTS LFSPXO076473 Crystal Oscillator

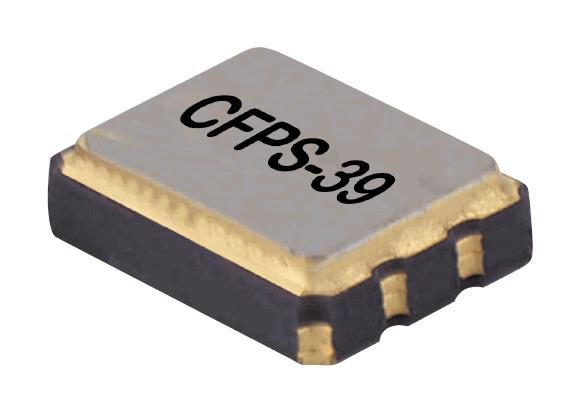

This surface mount crystal oscillator measures 3.2 x 2.5mm, housed in a hermetically sealed ceramic package with a metal lid, ideal for precision timing applications. Operating over -40°C to 85°C, with a frequency of 11.05920MHz, it features a stability of +25.00ppm and an aging rate of +3ppm per year at 25°C. It consumes 7.000mA at 3.3V, with output compatibility for CMOS devices, a drive capacity of 15pF max, and rise/fall times up to 5.0ns. Designed for high reliability, it includes standby operation and rugged environmental resistance.
IQD FREQUENCY PRODUCTS LFSPXO076473 Crystal Oscillator Specifications:
- Package Size: 3.2 x 2.5mm hermetically sealed ceramic with metal lid
- Frequency: 11.05920MHz
- Frequency Stability: +25.00ppm
- Operating Temperature Range: -40°C to 85°C
- Aging: +3ppm per year at 25°C
- Supply Voltage: 3.3V ±10%
- Current Draw: 7.000mA
- Output Form: CMOS
- Output Load: 15pF max
- Rise and Fall Time: 5.0ns max
- Duty Cycle: 45/55%
- Start-Up Time: 10ms max
- Standby Current: 10μA max
- Storage Temperature: -55°C to 125°C
- Shock Resistance: 1000G, 0.5ms MIL-STD-202F, Method 213B
- Vibration Resistance: 20g, 10Hz-2000Hz, 12hrs in 3 planes MIL-STD-202F, Method 204D
- Termination: RoHS compliant NiAu
- Reflow Temperature: 260°C max for 10s
- Packaging: Cut tape, reels for automatic placement
Buy the Crystal Oscillator Series LFSPXO076473: 11.0592MHz Precision Timing Module
Acquire the high-precision Crystal Oscillator in compact hermetic ceramic package today. With a frequency of 11.05920MHz, stable operation over -40°C to 85°C, and low power consumption, this device ensures accurate timing in demanding environments. Its robust design includes shock and vibration resistance, RoHS compliance, and easy surface-mount integration. Perfect for industrial, communications, and consumer electronics, place your order online now to benefit from fast delivery and reliable performance that guarantees your projects' success.
Order your Crystal Oscillator Series LFSPXO076473 today and ensure reliable, accurate timing for your electronic projects and industrial applications.
