IQD FREQUENCY PRODUCTS LFSPXO076588 Crystal Oscillator

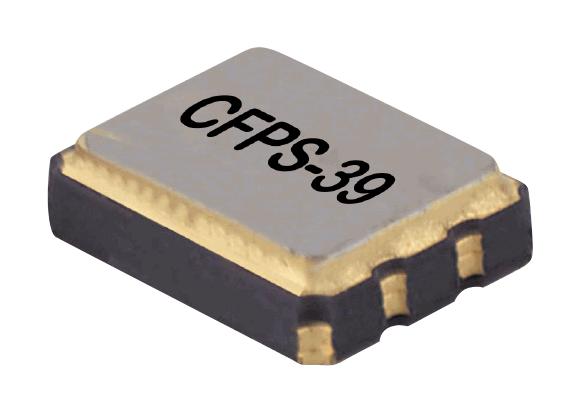

This surface mount crystal oscillator measures 3.2 x 2.5mm and features a hermetically sealed ceramic package with a metal lid for high reliability. Operating between -40°C and 85°C, it offers a frequency of 18.4320MHz with +25.00ppm stability and a 3ppm yearly aging rate. Powered at 3.3V with a maximum current of 7mA, it includes CMOS output, a 15pF load, and a 0.7ms start-up time. Its environmental resilience includes shock and vibration resistance, and it complies with RoHS and REACh standards, suitable for precise industrial timing applications.
IQD FREQUENCY PRODUCTS LFSPXO076588 Crystal Oscillator Specifications:
- Frequency: 18.4320MHz
- Frequency Stability: +25.00ppm
- Operating Temperature Range: -40°C to 85°C
- Aging: +3ppm max per year at 25°C
- Supply Voltage: 3.3V ±10%
- Current Draw: 7.000mA
- Output: CMOS
- Load Capacitance: 15pF max
- Rise and Fall Time: 5.0ns max
- Duty Cycle: 45/55%
- Start-Up Time: 0.7ms max
- Output Control: Logic '1' enables output, '0' disables output, high impedance when disabled
- Standby Current: 10μA max
- Storage Temperature Range: -55°C to 125°C
- Shock Resistance: 1000G, 0.5ms, MIL-STD-202F, Method 213B
- Vibration Resistance: 20g, MIL-STD-202F, Method 204D, Test D
- RoHS Compliance: Yes
- Reflow Temperature: 260°C for 10s max
- Packaging: Cutt from reel, pack size 100
Buy the Crystal Oscillator 18.4320MHz – Reliable Timing for Industrial Applications
Experience high-precision timing with this 18.432MHz crystal oscillator, ideal for industrial, telecommunications, and automation systems. Its hermetically sealed ceramic package ensures durability across temperature ranges from -40°C to 85°C, offering stability of ±25ppm and low aging of 3ppm per year. Powered by 3.3V with a maximum current of 7mA, it features CMOS output, fast start-up within 0.7ms, and compliance with RoHS and REACh standards. Perfect for applications demanding reliable, stable frequency signals.
Get IQD Frequency crystal oscillator LFSPXO076588 today—built for precision, stability, and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFSPXO076588?
You can click on the BUY or RFQ button to purchase LFSPXO076588 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFSPXO076588?
You can download the LFSPXO076588 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFSPXO076588?
IQD FREQUENCY PRODUCTS
