IQD FREQUENCY PRODUCTS LFSPXO076592 Crystal Oscillator

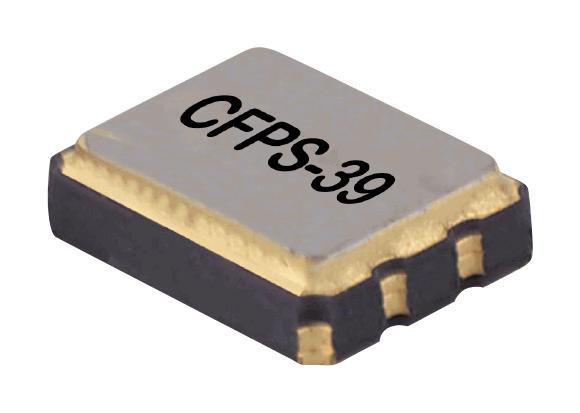

This surface mount crystal oscillator measures 3.2 x 2.5mm and comes in a hermetically sealed ceramic package with a metal lid, ensuring durability and stability. It operates at 24.5760MHz with a frequency stability of ±25ppm across -40°C to 85°C. The device features a supply voltage of 3.3V, a current draw of 12mA, and CMOS output compatibility with a drive capacity of 15pF. It supports standby operation, startup time of 10ms, and withstands shock and vibration according to MIL-STD standards. RoHS compliant and packed on reels for ease of integration.
IQD FREQUENCY PRODUCTS LFSPXO076592 Crystal Oscillator Specifications:
- Frequency: 24.5760MHz
- Frequency Stability: ±25ppm
- Operating Temperature Range: -40°C to 85°C
- Supply Voltage: 3.3V ±10%
- Current Draw: 12mA
- Output Compatibility: CMOS
- Drive Capability: 15pF max
- Rise and Fall Time: 5.0ns max
- Duty Cycle: 45/55%
- Start-Up Time: 10ms max
- Standby Current: 10μA max
- Storage Temperature Range: -55°C to 125°C
- Shock Resistance: 1000G, MIL-STD-202F, Method 213B
- Vibration Resistance: 20g, MIL-STD-202F, Method 204D, Test D
- Package: Hermetically sealed ceramic, 3.2 x 2.5mm
- Packaging: Reel, 1000 units
- RoHS and REACh compliant
Buy the Crystal Oscillator 24.5760MHz – Reliable Timing for Industrial Applications
Purchase this high-precision crystal oscillator online and ensure stable timing in your industrial, communication, and embedded systems. With a 24.5760MHz frequency, 3.3V operation, and hermetic ceramic packaging, it offers excellent reliability, temperature stability, and shock resistance. Ideal for demanding environments, this oscillator supports CMOS output with a drive capability of 15pF, ensuring compatibility with various circuits. Easy to handle and pack on reels, it’s your go-to solution for accurate timing needs across multiple applications.
Buy Crystal Oscillator 24.5760MHz from our online store now and experience reliable performance in your industrial and communication projects.
