IQD FREQUENCY PRODUCTS LFSPXO076596 Crystal Oscillator

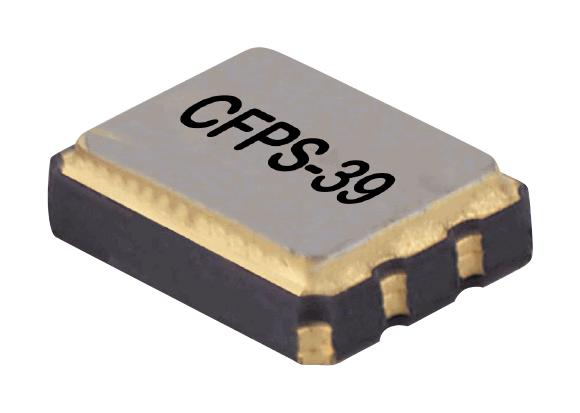

This surface mount crystal oscillator measures 3.2 x 2.5mm in a hermetically sealed ceramic package with a metal lid, offering high stability and reliability for industrial and electronic applications. Operating over -40°C to 85°C, it features a frequency of 48.0MHz with a stability of ±25ppm, suitable for precise timing and clock generation in various embedded systems. It consumes 20mA at 3.3V, with low phase noise and a duty cycle of 45/55%. The device provides an enable/disable output feature and withstands shocks up to 1000G, vibration testing, and wide temperature ranges for durability in demanding environments.
IQD FREQUENCY PRODUCTS LFSPXO076596 Crystal Oscillator Specifications:
- Frequency: 48.0MHz
- Frequency Stability: ±25ppm
- Operating Temperature Range: -40°C to 85°C
- Ageing: +3ppm max per year at 25°C
- Supply Voltage: 3.3V ±10%
- Current Draw: 20.000mA
- Output Type: CMOS
- Output Capacitance: 15pF max
- Rise and Fall Time: 5.0ns max
- Duty Cycle: 45/55%
- Start-Up Time: 0.7ms typical to 90%
- Standby Operation: Logic ‘1’ enables, logic ‘0’ disables output
- Standby Current: Max 10A
- Storage Temperature Range: -55°C to 125°C
- Shock Resistance: 1000G, MIL-STD-202F, Method 213B
- Vibration: 20g, MIL-STD-202F, Method 204D, Test D
- RoHS Compliant, MSL Rating: Not Applicable, Reflow Temp: 260°C for 10s
- Packaging: Tape, cut from reel, pack size 100 units
- Outline Dimensions: 3.2mm x 2.5mm
- Seam-sealed ceramic hermetic package with metal lid
Buy the IQD Frequency Products LFSPXO076596 Reliable Crystal Oscillator for Industrial Applications
Purchase the IQD Frequency Products crystal oscillator LFSPXO076596 now and ensure reliable performance for your electronic projects. Designed with a hermetically sealed ceramic package, it offers high stability, low phase noise, and excellent durability under extreme conditions. Perfect for industrial clocks, embedded systems, and timing circuits, this surface mount device guarantees precision and long-term reliability. Its compact size and low power consumption make it ideal for space-constrained, high-demand applications. Buy online today for quality you can trust.
Get IQD Frequency Products LFSPXO076596 today—built for precision with hermetic sealing and high stability in industrial environments.
