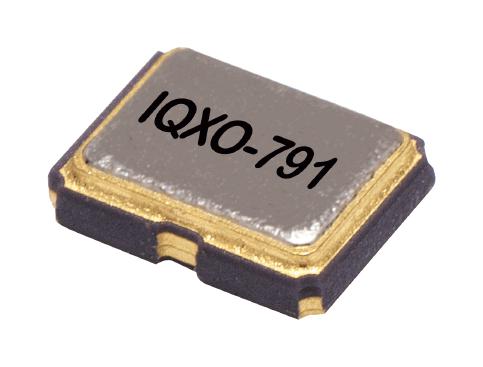

IQD FREQUENCY PRODUCTS LFSPXO082200 Crystal Oscillator
This ceramic package crystal oscillator operates at 8.0MHz, featuring excellent frequency stability of ±25ppm and a stable operating temperature range from -20°C to 70°C. It has a supply voltage of 3.3V ±10%, low power consumption with a stand-by current of 10μA, and fast start-up time of 10ms. It offers high drive capability, low phase jitter of 1ps rms, and a wide storage temperature of -55°C to 125°C. Designed with RoHS compliance, it suits precise timing applications in industrial and electronic equipment.
IQD FREQUENCY PRODUCTS LFSPXO082200 Crystal Oscillator Specifications:
- Frequency: 8.0MHz
- Frequency Stability: ±25ppm
- Operating Temperature Range: -20°C to 70°C
- Storage Temperature Range: -55°C to 125°C
- Supply Voltage: 3.3V ±10%
- Current Draw: 7.000mA
- Start Up Time: 10ms max
- Output Voltage Levels: VoL 10%Vs max, VoH 90%Vs min
- Output Drive Capability: 15pF
- Rise and Fall Time: 7.0ns max
- Duty Cycle: 40/60%
- Phase Jitter: 1ps rms max (12kHz to 20MHz)
- Period Jitter: +80ps pk-pk, +10ps (10%)
- Noise Parameters: Suitable for high precision timing applications
- Mechanical Shock and Vibration: MIL-STD-883 compliant
- RoHS and REACh compliant
- RoHS Reflow Temp: 260°C max for 10 secs
- Packaging: Cut tape, pack size 100
Buy the BrandName LFSPX082200 – Reliable Crystal Oscillator for Industrial Applications
Discover the high precision ceramic crystal oscillator designed for demanding industrial applications. Operating at 8.0MHz with ±25ppm stability, it provides ultra-low jitter of 1ps rms, fast 10ms start-up, and low power consumption with a stand-by current of 10μA. Its wide temperature range from -20°C to 70°C ensures reliable operation in diverse environments. RoHS compliant and packaged in cut tape, it offers easy integration and long-term performance for timing, communication, and industrial automation systems. Purchase online today to ensure your projects meet exacting standards.
Buy BrandName LFSPX082200 now and experience unmatched reliability with precise 8.0MHz timing, low jitter, and RoHS compliance for industrial electronics.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFSPXO082200?
You can click on the BUY or RFQ button to purchase LFSPXO082200 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFSPXO082200?
You can download the LFSPXO082200 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFSPXO082200?
IQD FREQUENCY PRODUCTS
