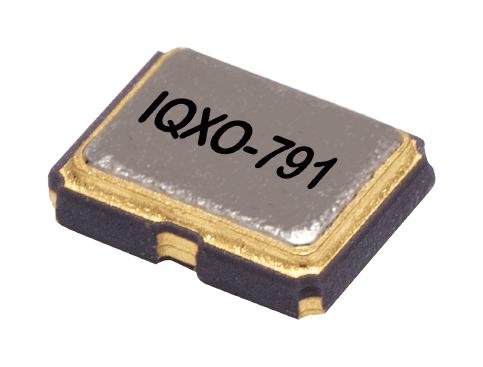

IQD FREQUENCY PRODUCTS LFSPXO082203 Oscillator Device
This ceramic packaged oscillator operates at 19.20MHz frequency with excellent stability of ±25ppm over temperature range of -20°C to 70°C. It features a supply voltage of 3.3V with a current draw of 7.000mA, and includes enable/disable control via logic ‘1’ enabling oscillator output, and logic ‘0’ disabling it with high impedance state. The device offers low jitter of 80ps pk-pk, quick start-up time of 10ms, and RoHS compliant termination and reflow temperature of 260°C. Suitable for precision timing applications requiring stability, compact size, and reliable operation under environmental stresses.
IQD FREQUENCY PRODUCTS LFSPXO082203 Oscillator Device Specifications:
- Frequency: 19.20MHz
- Frequency Stability: +25.00ppm
- Operating Temperature Range: -20.00 to 70.00°C
- Ageing: +3ppm max per year at 25°C
- Supply Voltage: 3.3V ±10%
- Current Draw: 7.000mA
- Output Type: HCMOS
- Output Load: 15pF
- Rise and Fall Time: 7.0ns max
- Duty Cycle: 40/60%
- Output Low Voltage: 10%Vs max
- Output High Voltage: 90%Vs min
- Start Up Time: 10ms max
- Stand-by Current: 10μA max
- Period Jitter (pk-pk): ±80ps
- Phase Jitter (12kHz to 20MHz): 1ps rms
- Storage Temperature Range: -55 to 125°C
- Mechanical Shock: MIL-STD-883 Method 2002 Condition B
- Vibration: MIL-STD-883 Method 2007 Condition A
- RoHS Compliance: Yes
- Reflow Temperature: 260°C max for 10 seconds
Buy the Buy Oscillator Part Number LFSPX082203 Online
Order the Oscillator LFSPX082203 online today for reliable 19.20MHz frequency stability, low jitter, and quick startup. Perfect for high-precision applications requiring stable clock signals in compact ceramic packages. Enjoy the convenience of RoHS compliance and robust environmental resistance, including temperature stability from -20°C to 70°C, and compliance with MIL-STD vibration and shock standards. Secure your supply with fast delivery, excellent performance, and technical support available for seamless integration into your electronic systems.
Buy Oscillator LFSPX082203 now and experience unmatched stability and reliability for your precision timing needs.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFSPXO082203?
You can click on the BUY or RFQ button to purchase LFSPXO082203 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFSPXO082203?
You can download the LFSPXO082203 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFSPXO082203?
IQD FREQUENCY PRODUCTS
