IQD FREQUENCY PRODUCTS LFSPXO082204 Crystal Oscillator

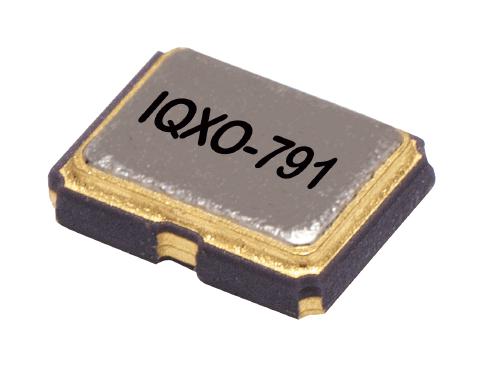

The LFSPX0082204Cutt is a high-performance crystal clock oscillator mounted in a ceramic package with a hermetically sealed metal lid. It operates at 20.0 MHz with excellent stability of +25.00 ppm and features low power consumption with a supply voltage of 3.3V ±10%. This oscillator provides stable output signals with a rise and fall time of 7.0 ns and drive capability of 15 pF. It is designed for precise timing in industrial, communication, and embedded systems, ensuring reliable performance across a temperature range of -20°C to 70°C and in rugged environments with MIL-STD-883 shock and vibration resistance.
IQD FREQUENCY PRODUCTS LFSPXO082204 Crystal Oscillator Specifications:
- Frequency: 20.0MHz with +25.00ppm stability
- Operating Temperature Range: -20°C to 70°C
- Storage Temperature Range: -55°C to 125°C
- Supply Voltage: 3.3V ±10%
- Current Draw: 12.000mA
- Output Voltage Levels: VoH 90%Vs, VoL 10%Vs
- Rise and Fall Time: 7.0 ns
- Start Up Time: 10ms max
- Drive Capability: 15 pF
- Output Control: Enable/Disable logic with high impedance state when disabled
- Cycle Duty: 40/60%
- Jitter: Period pk-pk +80 ps, phase rms 1 ps
- Vibration Resistance: MIL-STD-883, Method 2007
- Shock Resistance: MIL-STD-883, Method 2002
- RoHS and REACh compliant, package style Cutt tape, pack size 100
Buy the IQD Frequency Products LFSPX0082204Cutt – Reliable Crystal Oscillator for Industrial Applications
Purchase the IQD LFSPX0082204Cutt crystal oscillator online today to enhance your industrial, communication, or embedded system projects. Featuring a frequency of 20 MHz, stable output, low power consumption, and rugged MIL-STD-883 shock and vibration resistance, this hermetically sealed ceramic package ensures unmatched reliability. With a compact design and RoHS compliance, it fits seamlessly into tightly integrated electronic assemblies. Enjoy fast delivery, competitive pricing, and technical support when you buy directly online, securing a dependable timing solution for your critical applications.
Order your IQD Series LFSPX0082204Cutt oscillator today and ensure your electronic projects benefit from dependable and precise frequency stability.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFSPXO082204?
You can click on the BUY or RFQ button to purchase LFSPXO082204 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFSPXO082204?
You can download the LFSPXO082204 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFSPXO082204?
IQD FREQUENCY PRODUCTS
