IQD FREQUENCY PRODUCTS LFSPXO082206 Oscillator Device

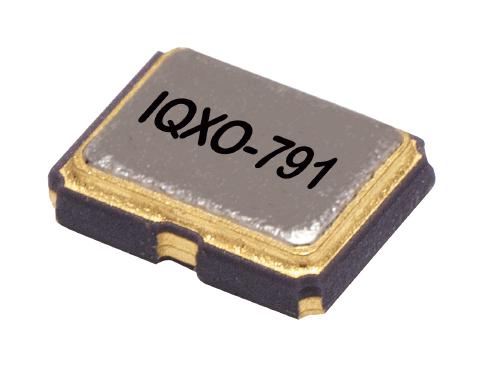

The oscillator is a standard 2.5 x 2.0 ceramic package device with a hermetically sealed metal lid, providing a 32.768 MHz frequency with stability of +25.00 ppm over temperature. It operates between -20°C and 70°C, with a supply voltage of 3.3V and a current draw of 20mA. Features include enable/disable control, low standby current of 10μA, and high reliability with RoHS compliance. Suitable for precise timing applications in embedded systems, it offers low jitter, fast start-up time, and mechanical durability under shock and vibration conditions.
IQD FREQUENCY PRODUCTS LFSPXO082206 Oscillator Device Specifications:
- Frequency: 32.768 MHz
- Frequency Stability: +25.00 ppm
- Operating Temperature Range: -20°C to 70°C
- Storage Temperature Range: -55°C to 125°C
- Supply Voltage: 3.3V ±10%
- Current Draw: 20mA
- Start Up Time: 10ms max
- Output Voltage Levels: VoH: 90%Vs min, VoL: 10%Vs max
- Output Drive Capability: HCMOS, 15pF load
- Rise and Fall Time: 7.0ns max
- Duty Cycle: 40/60%
- Line Impact: Enable/Disable via logic ‘1’ or ‘0’ on pad 1
- Stand-by Current: 10μA max, 1.0μA typ @25°C
- Jitter: Period pk-pk: +80ps typ, Phase jitter: 1ps rms maximum from 12kHz to 20MHz
- Vibration: MIL-STD-883, Method 2007, Condition A
- Shock: MIL-STD-883, Method 2002, Condition B
- RoHS & REACH Compliant
- Reflow Temperature: 260°C max for 10 seconds
- Packaging: Cut tape, pack size 100 units
Buy the IQD Series Oscillator 32.768 MHz: LFSPX082206
Purchase the high-quality IQD oscillator LFSPX082206 online today to ensure precise timing in your electronic devices. Featuring a 32.768 MHz frequency, low jitter, enable/disable control, and low standby power, this ceramic package oscillator is ideal for embedded systems, timing modules, and communication equipment. Its robust design withstands shock and vibration, with RoHS compliance for environmental safety. Order now and enhance your project’s reliability with this trusted, durable, and accurate oscillator, ready for rapid deployment in your manufacturing process.
Buy IQD LFSPX082206 oscillator now and experience unmatched reliability and precise timing performance in your electronic projects.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFSPXO082206?
You can click on the BUY or RFQ button to purchase LFSPXO082206 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFSPXO082206?
You can download the LFSPXO082206 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFSPXO082206?
IQD FREQUENCY PRODUCTS
