IQD FREQUENCY PRODUCTS LFSPXO082219 Oscillator Module

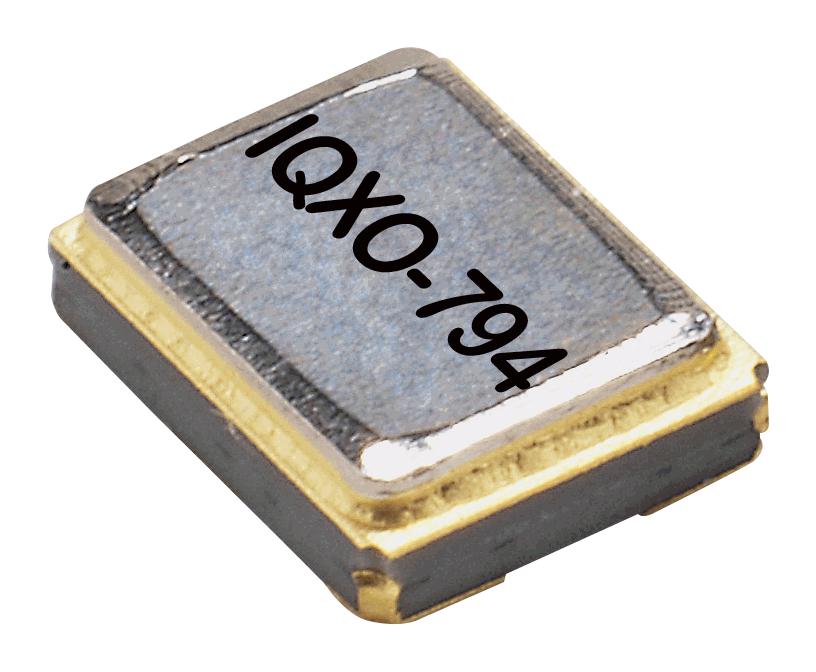

The oscillator is a standard 2.5 x 2.0 mm ceramic package with a hermetically sealed metal lid, offering stable 8.0 MHz frequency with a %+25.00 ppm stability. It operates between -20°C and 70°C, with an aging rate of +3 ppm annually. Designed for low power consumption, it draws 10 mA at 1.8V. The device provides HCMOS output with an 80 ps jitter and features standby control for efficiency. Suitable for precise timing in various electronic applications, this crystal oscillator ensures reliable performance across harsh environments.
IQD FREQUENCY PRODUCTS LFSPXO082219 Oscillator Module Specifications:
- Frequency: 8.0 MHz
- Frequency Stability: +25.00 ppm
- Operating Temperature Range: -20°C to 70°C
- Storage Temperature Range: -55°C to 125°C
- Supply Voltage: 1.8V ±5%
- Current Draw: 10 mA
- Output Compatibility: HCMOS
- Drive Capability: 15 pF
- Rise and Fall Time: 10.0 ns max
- Duty Cycle: 40/60%
- Output Voltage High: 90% of VS min
- Output Voltage Low: 10% of VS max
- Startup Time: 10 ms max
- Standby Current: 10 μA max, 0.5 μA typ @ 25°C
- Jitter (Period pk-pk): +80 ps typ
- Jitter (Phase 12 kHz to 20 MHz): 1 ps max
- Shock Resistance: MIL-STD-202, Method 213
- Vibration Resistance: MIL-STD-883, Method 2007
- RoHS and REACh compliant
Buy the IQD Frequency Products LFSPXO082219 – Reliable 8MHz Oscillator for Industrial Applications
Order the IQD Frequency Products LFSPXO082219 oscillator online now and experience precision timing with exceptional stability and low jitter. Designed for reliable performance in industrial and electronics applications, this compact oscillator features a hermetically sealed ceramic package, low power consumption, and standby functionality to optimize energy efficiency. Perfect for demanding environments, it complies with RoHS and REACh standards and is available in tape-and-reel packaging. Secure your supply of this premium oscillator today for consistent and accurate electronic timing solutions.
Get IQD Frequency Products LFSPXO082219 today—built for precision, stability, and long-lasting durability in demanding electronic environments.
