IQD FREQUENCY PRODUCTS LFSPXO082221 Oscillator

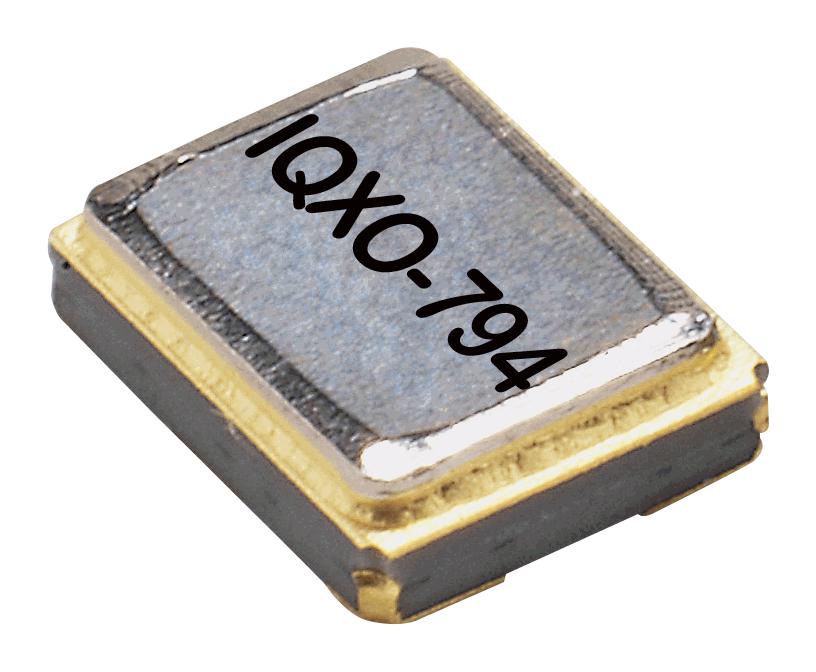

This ceramic package oscillator features a 2.5 x 2.0 mm size with hermetically sealed metal lid, offering reliable frequency stability of +25ppm at 16MHz. Operating between -20°C to 70°C and with a disturbingly low power draw of 10mA at 1.8V, it provides HCMOS output compatible with various systems. Designed for industrial applications, it includes standby functionality and noise parameters like jitter of +80ps. Packaged in tape and reel, suitable for automation, embedded systems, and precision timing needs.
IQD FREQUENCY PRODUCTS LFSPXO082221 Oscillator Specifications:
- Frequency: 16.0MHz
- Frequency Stability: +25.00ppm
- Operating Temperature Range: -20°C to 70°C
- Storage Temperature Range: -55°C to 125°C
- Supply Voltage: 1.8V ±5%
- Current Draw: 10.000mA
- Output Compatibility: HCMOS
- Drive Capability: 15pF
- Rise and Fall Time: 10.0ns max
- Duty Cycle: 40/60%
- Output Voltage: High: 90% of VS min, Low: 10% of VS max
- Start Up Time: 10ms max
- Standby Current: 10µA max, 0.5µA typ
- Jitter (Period pk-pk): +80ps typ
- Jitter (Phase 12kHz-20MHz): 1ps max
- Shock Resistance: MIL-STD-202, Method 213
- Vibration: MIL-STD-883, Method 2007
- RoHS and REACh compliant
- Pack Style: Cut tape
- Pack Size: 100
- Part No.: LFSPX0082221
Buy the IQD Frequency Products LFSPXO082221 – Reliable Oscillator for Industrial Applications
Purchase the IQD oscillator LFSPXO082221 online today and experience reliable operation with precise frequency stability. Featuring low power consumption, standby mode, and a hermetic ceramic package, it is designed for industrial, automation, and embedded system applications. Perfect for timing and frequency control, this oscillator ensures consistent performance in demanding environments. Whether you need a compact design or high stability, buy this high-quality oscillator today and boost your system’s reliability and accuracy with ease and confidence.
Get IQD Frequency Products LFSPXO082221 today—built for precision, low power consumption, and long-lasting performance in industrial environments.
