IQD FREQUENCY PRODUCTS LFSPXO082225 High-Precision Oscillator

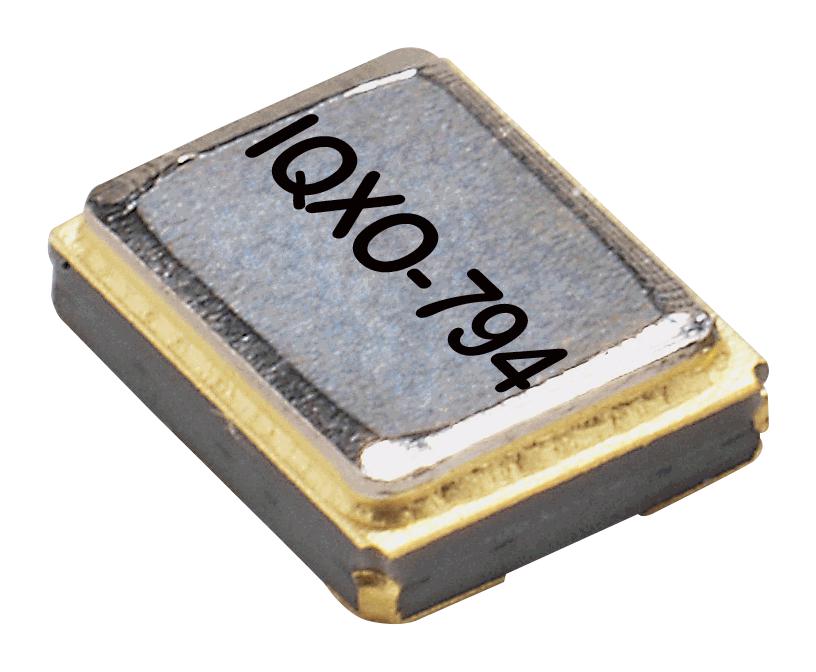

This is a standard 2.5 x 2.0 ceramic package oscillator with a hermetically sealed metal lid, offering precise frequency stability and low jitter. It operates from -20°C to 70°C, with a supply voltage of 1.8V ±5%. The oscillator provides HCMOS output compatible with a drive capability of 15pF, with a rise and fall time of 10ns. Its standby function conserves power, and it features excellent noise performance, including jitter of 80ps peak-to-peak. Suitable for demanding electronic applications requiring high stability and minimal interference.
IQD FREQUENCY PRODUCTS LFSPXO082225 High-Precision Oscillator Specifications:
- Frequency: 32.7680MHz
- Frequency Stability: ±25.00ppm
- Operating Temperature Range: -20°C to 70°C
- Storage Temperature Range: -55°C to 125°C
- Supply Voltage: 1.8V ±5%
- Current Draw: 10mA
- Output Compatibility: HCMOS
- Drive Capability: 15pF
- Rise and Fall Time: 10ns max
- Duty Cycle: 40/60%
- Output Voltage High: 90% of VS min
- Output Voltage Low: 10% of VS max
- Start Up Time: 10ms max
- Standby Current: <0.5µA @ 25°C
- Jitter (pk-pk): +80ps typ
- Jitter (phase 12kHz-20MHz): 1ps max
- Shock Resistance: MIL-STD-202, Method 213
- Vibration Resistance: MIL-STD-883, Method 2007
- RoHS and REACh compliant
- Pack Style: cut tape in reel, pack size 100
- Outline dimensions: 25.2mm x 20.1mm
Buy the IQD Series Oscillator: LFSPXO082225
Purchase the IQD Series LFSPXO082225 oscillator online today to benefit from its high stability, low jitter, and hermetic sealing. Perfect for applications demanding precise frequency control, it operates over a wide temperature range from -20°C to 70°C and features low power consumption with standby functionality. Its compact ceramic package ensures durability and reliable performance, making it ideal for timing modules, communication equipment, and automation systems. Order now for fast delivery and seamless integration into your design.
Order your IQD Series LFSPXO082225 high-precision oscillator today and ensure reliable timing performance for your electronic projects.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFSPXO082225?
You can click on the BUY or RFQ button to purchase LFSPXO082225 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFSPXO082225?
You can download the LFSPXO082225 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFSPXO082225?
IQD FREQUENCY PRODUCTS
