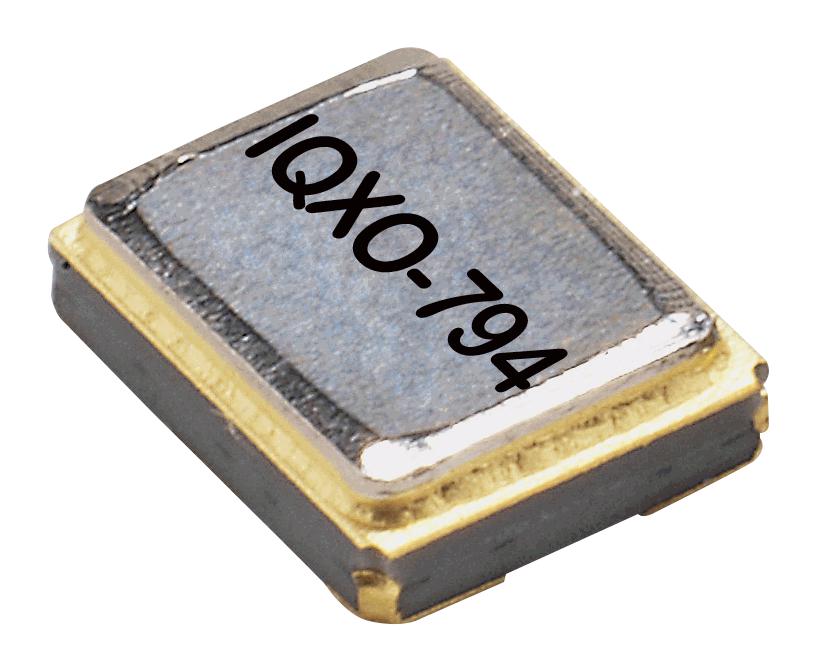

IQD FREQUENCY PRODUCTS LFSPXO082227 Quartz Oscillator
The 2.5 x 2.0 ceramic package oscillator features a hermetically sealed metal lid, offering stable 40.0 MHz frequency with ±25 ppm stability. Operating from -20°C to 70°C, it draws 10mA at 1.8V supply. The HCMOS output provides a rise and fall time of 10ns, with a duty cycle of 40/60%. It includes standby functionality, jitter of +80ps, and robustness against shock and vibration per MIL standards. RoHS and REACh compliant, packaged in tape from a reel, ideal for precise timing applications in industrial electronics.
IQD FREQUENCY PRODUCTS LFSPXO082227 Quartz Oscillator Specifications:
- Frequency: 40.0 MHz
- Frequency Stability: ±25 ppm
- Operating Temperature Range: -20°C to 70°C
- Storage Temperature Range: -55°C to 125°C
- Supply Voltage: 1.8V ±5%
- Current Draw: 10mA
- Output: HCMOS, Rise/Fall Time: 10ns
- Duty Cycle: 40/60%
- Output High Voltage: 90% of VS min
- Output Low Voltage: 10% of VS max
- Start Up Time: 10ms max
- Jitter (pk-pk): +80ps
- Vibration: MIL-STD-883, Method 2007
- Shock: MIL-STD-202, Method 213
- RoHS & REACh compliant
- Packaging: Tape, 100 units per reel
Buy the Buy Quartz Oscillator Part Number LFSPXO082227 Online
Purchase the high-precision quartz oscillator part number LFSPXO082227 online today and benefit from its stable 40 MHz frequency, low jitter, and hermetic ceramic package. Designed for industrial applications, this oscillator offers excellent temperature stability from -20°C to 70°C, low power consumption of 10mA at 1.8V, and robust construction compliant with MIL-STD shock and vibration standards. Packaged in tape, it’s ideal for automated assembly, ensuring your electronic circuits maintain precise timing and reliability in demanding environments.
Order your IQD Frequency Products Series LFSPXO082227 quartz oscillator today and ensure reliable timing for your industrial electronics projects.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFSPXO082227?
You can click on the BUY or RFQ button to purchase LFSPXO082227 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFSPXO082227?
You can download the LFSPXO082227 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFSPXO082227?
IQD FREQUENCY PRODUCTS
