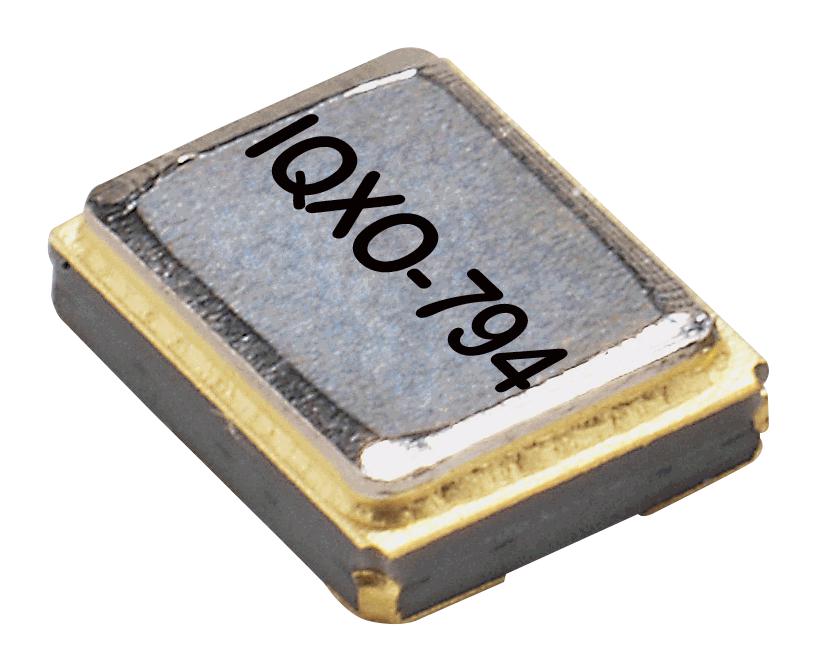

IQD FREQUENCY PRODUCTS LFSPXO082229 Frequency Oscillator
This high-reliability 32.0MHz ceramic package crystal oscillator features a hermetically sealed metal lid, with a supply voltage of 1.8V ±5%, and operates within a temperature range of -20°C to 70°C. It offers excellent stability (+25ppm), low jitter, and fast start-up times, making it ideal for precise timing applications. The device supports HCMOS output, with drive capacity of 15pF, and includes standby functionality for power efficiency. Suitable for use in aerospace, industrial, and communication systems requiring stable, low-noise oscillators.
IQD FREQUENCY PRODUCTS LFSPXO082229 Frequency Oscillator Specifications:
- Frequency: 32.0MHz
- Frequency Stability: +25.00ppm
- Supply Voltage: 1.8V ±5%
- Operating Temperature Range: -20°C to 70°C
- Storage Temperature Range: -55°C to 125°C
- Current Draw: 10mA
- Output Compatibility: HCMOS
- Drive Capability: 15pF
- Rise and Fall Time: 10.0ns max
- Duty Cycle: 40/60%
- Output Voltage High: 90% of VS min
- Output Voltage Low: 10% of VS max
- Start-Up Time: 10ms max (0.9ms typ)
- Standby Current: 10μA max, 0.5μA typ @ 25°C
- Jitter (Period pk-pk): +80ps typ
- Jitter (Phase 12kHz-20MHz): 1ps max
- Jitter (Period One Sigma): +10ps typ
- Shock: MIL-STD-202, Method 213
- Vibration: MIL-STD-883, Method 2007
- RoHS and REACh compliant
- Pack Style: Cut, reel packaged (100 pcs)
Buy the Buy IQD Frequency Oscillator Part Number LFSPXO082229 Online
Enhance your electronic designs with this high-performance 32MHz frequency oscillator, featuring a ceramic package with hermetic sealing, low jitter, and excellent stability. Powered by a 1.8V supply and supporting HCMOS output, it provides reliable operation across a wide temperature range from -20°C to 70°C, making it ideal for aerospace, industrial, and communication applications. Its fast start-up time, standby function, and compliance with RoHS and REACh standards make it a dependable choice for critical timing needs, available for quick online purchase.
Order your IQD Frequency Oscillator LFSPXO082229 today and ensure your projects benefit from precise, stable timing with low jitter and standby features.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFSPXO082229?
You can click on the BUY or RFQ button to purchase LFSPXO082229 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFSPXO082229?
You can download the LFSPXO082229 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFSPXO082229?
IQD FREQUENCY PRODUCTS
