IQD-Frequency-Products LFTCXO068373 High-Stability TCXO

Name: LFTCXO068373 - Electronic Component
Brand: IQD-Frequency-Products
SKU: LFTCXO068373
Availability: InStock
Rating: 5.0 (1 reviews)

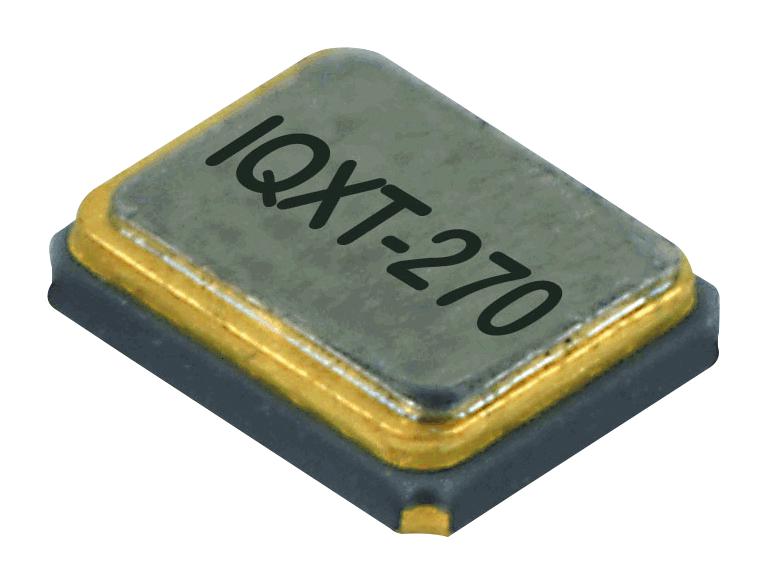

The IQXT-270 is a high-stability temperature compensated crystal oscillator (TCXO) designed for demanding GPS and mobile applications. Compact at 2.0 x 1.6mm, it features low power consumption, excellent phase noise performance, and stable frequency output over wide temperature ranges. The device includes a high-order temperature compensation circuit, operates down to 1.8V, and supports power down mode for energy efficiency. Ideal for smartphones, GPS devices, and communication systems requiring precise, low-noise clock signals, ensuring reliable performance in space-constrained environments.

IQDFrequency TCXO – Reliable 1QXT-270 for Industrial Applications

View LFTCXO068373Datasheet [pdf]

IQD-Frequency-Products LFTCXO068373 High-Stability TCXO Specifications:

Frequency Range: 13.0MHz to 52.0MHz
Frequency Tolerance: +2.00ppm
Frequency Stability: +0.50ppm to +2.00ppm
Temperature Range: -40°C to 85°C
Supply Voltage: 1.8V to 3.0V
Supply Current: Typical values not specified but optimized for low power
Operating Temperature: -40°C to 85°C
Output: Clipped sine wave, DC coupled, drive capability 10kΩ//10pF ±10%
Start-up Time: 0.5ms (amplitude), 2ms (frequency) within specified limits
Phase Noise: -65dB@1Hz, -93dB@10Hz, -117dB@100Hz, -137dB@1kHz, -149dB@10kHz, -151dB@100kHz
Pulling Range: +6ppm to +30ppm
Output Enable/Disable: Power down mode via logic control
Shock & Vibration Resistance: MIL-STD-202 M213, JESD22-B103-B
Moisture Resistance: 1000 hours at 85°C, 85% RH
Environmental Durability: Thermal cycling and shock resistance for harsh environments
Package Size: 2.0 x 1.6mm, Height <0.8mm
Connector Pads: Ground, Output, Voltage Control, Enable/Disable

Buy the IQDFrequency TCXO – Reliable 1QXT-270 for Industrial Applications

Purchase the high-stability IQDFrequency 1QXT-270 online today—designed for demanding GPS, smartphone, and communication applications. This compact oscillator offers excellent phase noise performance, low power consumption, and stable frequency output over wide temperature ranges. Its small form factor, operating down to 1.8V, and advanced temperature compensation circuitry make it ideal for space-constrained environments needing reliable, precise timing solutions. Enjoy quick delivery and ongoing support for your critical electronic projects.

Get IQDFrequency 1QXT-270 today—built for precision and long-lasting durability in demanding telecom and GPS applications.
