IQD FREQUENCY PRODUCTS LFTVXO009915 High-Stability TCVCXO
The surface mount temperature compensated voltage controlled oscillator (TCVCXO) offers high frequency stability from 10.0MHz to 40.0MHz over a wide temperature range of -40°C to 85°C. Encased in a hermetically sealed ceramic package, it features low power consumption of 3mA at 20MHz and compatibility with HCMOS output. Its stable frequency ±0.50ppm, excellent environmental resilience, and precise control voltage of 1.65V±1.0V make it ideal for precision timing in communication and instrumentation applications. Suitable for convection reflow soldering and aqueous washing, it is RoHS and REACh compliant.
IQD FREQUENCY PRODUCTS LFTVXO009915 High-Stability TCVCXO Specifications:
- Frequency Range: 10.0MHz to 40.0MHz
- Frequency Stability: ±0.50ppm
- Aging: ±1ppm in 1st year @ 25°C
- Supply Voltage: 3.3V ±5%
- Current Draw: 3mA @ 20MHz
- Supply Voltage Variation: <30MHz +0.3ppm, 30-40MHz +0.4ppm
- Load Variation: +0.2ppm (@15pF ±10%)
- Frequency Pulling: +5ppm min
- Control Voltage: 1.65V ±1.0V
- Operating Temperature: -40°C to 85°C
- Output Compatibility: HCMOS, Drive Capability 15pF nom
- Environmental Resistance: IEC shock 980m/s², vibration IEC 60068-2-6, Solderability MIL-STD-202, Storage -55°C to 125°C
- Manufacturing: Suitable for convection reflow, max temp 260°C for 60sec, withstands aqueous washing
- RoHS & REACh compliant, MSL Rating 1

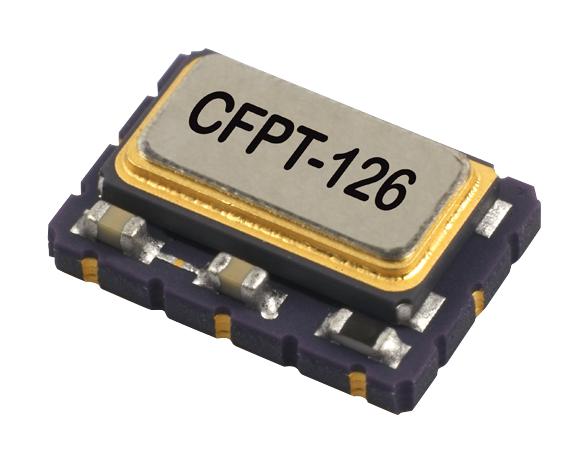

Buy the Buy IQD TCVCXO Part Number LFTVXO009915 Online
Purchase the IQD high-stability TCVCXO series LFTVXO009915 online today. With a frequency range of 10MHz to 40MHz, low power consumption, and exceptional temperature stability, this hermetically sealed device guarantees reliable performance across -40°C to 85°C. Its HCMOS output and precise frequency adjustment make it ideal for advanced communication, timing, and instrumentation applications. Easily order online, benefit from RoHS compliance, and get quick delivery to enhance your project's accuracy and dependability.
Order your IQD series LFTVXO009915 high-stability TCVCXO today and ensure precise timing for your communication and instrumentation projects.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFTVXO009915?
You can click on the BUY or RFQ button to purchase LFTVXO009915 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFTVXO009915?
You can download the LFTVXO009915 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFTVXO009915?
IQD FREQUENCY PRODUCTS
